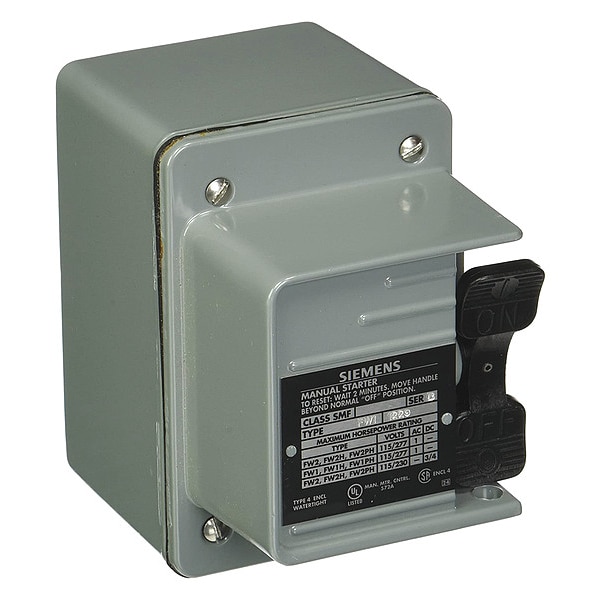

Arrancador manual de motor, calificación NEMA 4, 1 polo.
| Item | Manual Motor Starter |
|---|---|
| Enclosure NEMA Rating | 4 |
| Number of Poles | 1 |
| HP @ 1 Phase - 120V | 1 hp |
| Depth | 4.56 in |
| Standards | Eclass 27-37-04-01, ETIM EC000074, ETIM EC000074 IDEA 4845 |
| Description/Special Features | Standard, Watertight, Dust-tight Metallic Enclosure, Starter with Handle Guard/Lock-Off |
| Width | 3 in |
| Height | 4.69 in |
| Max. Voltage | 277V AC |
| HP @ 1 Phase - 230V | 1 hp |
| Operator | Toggle Switch |
| Series | Class SMF |
| Maximum Voltage Rating | 277 V AC |
| Horsepower @ Single Phase - 240V AC | 1 HP |
| Overall Depth | 4.56 in |
| Overall Height | 4.69 in |
| Overload Protection Type | Thermal |
| Horsepower @ Single Phase - 120V AC | 1 HP |
| Overall Width | 3 in |
| NEMA Enclosure Rating | 4 |
| Phase | Single |
| Includes Pilot Light | No |
| Package Quantity | 1 |
