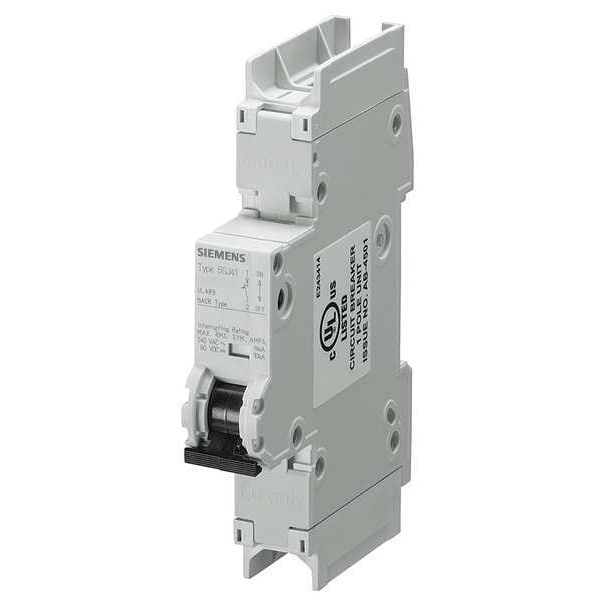

Miniature Circuit Breaker, 5SJ4 Series, 63A, 1 Pole, 240V AC, 10kA, C Curve
| Item | Miniature Circuit Breaker |
|---|---|
| Series | 5SJ4 |
| Amps | 63A |
| Number of Poles | 1 |
| AC Voltage Rating | 240V AC |
| Circuit Breaker Mounting Style | Standard Mounting Rail |
| Max. AIR Rating | 10kA |
| Trip Type | Thermal Magnetic |
| Terminal Connection | Screw Clamp |
| Frame Size | 1 |
| Width | 0.9 in |
| Depth | 3.3 in |
| Height | 4.48 in |
| DC Voltage Rating | 60V DC |
| Curve Type | C |
| Standards | CSA C22.2 No. 5-02, EN60898, EN60947-2, UL 489 Listed |
| Min. Wire Size | 14 AWG |
| Application | Commercial, Industrial |
| Max. Wire Size | 4 AWG |
| Housing Material | Thermoplastic |
| Package Quantity | 1 |
