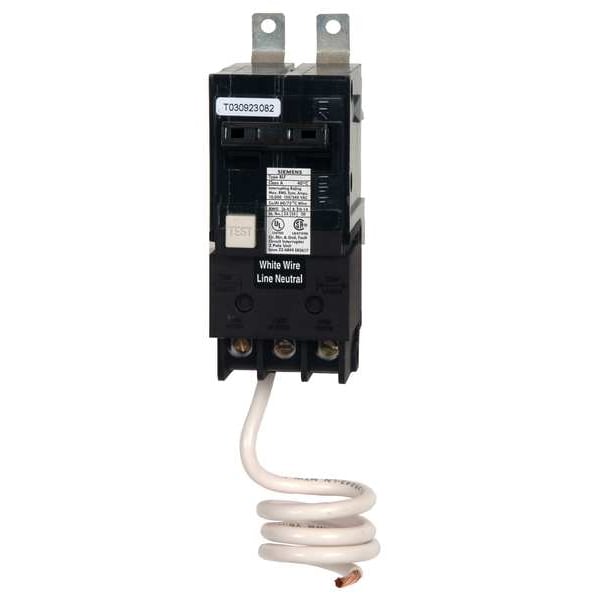

Miniature Circuit Breaker, BFH Series, 60A, 2 Pole, 120/240V AC, 22kA at 120/240V AC
| Item | Miniature Circuit Breaker |
|---|---|
| Series | BFH |
| Amps | 60A |
| Number of Poles | 2 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | Ground Fault Circuit Interrupter |
| Phase | 1 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Bolt On |
| Max. AIR Rating | 22kA at 120/240V AC |
| Trip Type | Thermal Magnetic |
| Terminal Connection | Lug |
| Frame Size | 60A, BLHF |
| Width | 4 in |
| Depth | 7 in |
| Height | 3 in |
| DC Voltage Rating | Not Rated |
| Max. Wire Size | 2 AWG (Al), 4 AWG (Cu) |
| Standards | CSA Certified, HACR Rated, NOM Certified, UL Listed |
| For Use With | Siemens Panelboards |
| Min. Wire Size | 8 AWG |
| Length (Straight Wireway) | 3 in |
| Length | 3 in |
| Mounting | Bolt on |
| Voltage | 120/240VAC |
| Package Quantity | 1 |
