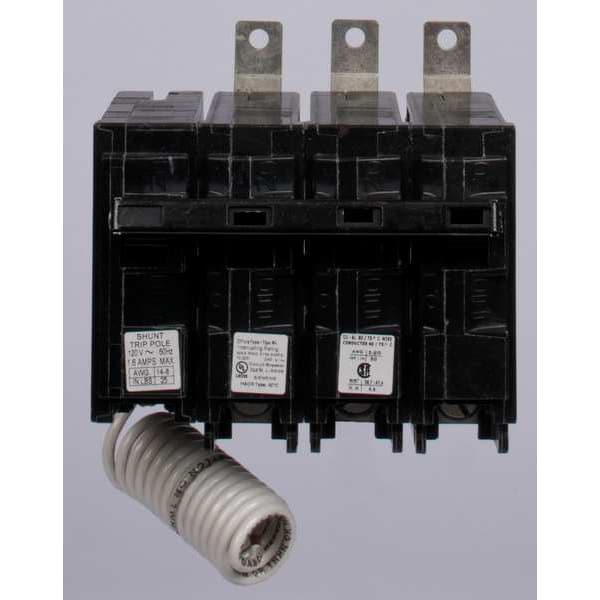

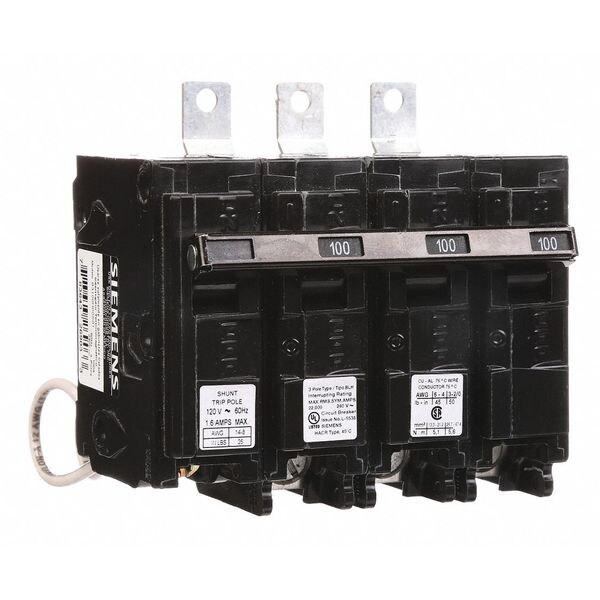

Miniature Circuit Breaker, BL Series, 100A, 3 Pole, 120/240V AC, 22kA at 240V AC
| Item | Miniature Circuit Breaker |
|---|---|
| Series | BL |
| Amps | 100A |
| Number of Poles | 3 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | Shunt Trip |
| Phase | 3 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Bolt On |
| Max. AIR Rating | 22kA at 240V AC |
| Trip Type | Thermal Magnetic |
| Terminal Connection | Lug |
| Frame Size | 125A, BLH |
| Width | 4-1/2 in |
| Depth | 5.6 in |
| Height | 3.8 in |
| DC Voltage Rating | Not Rated |
| Standards | CSA Certified, HACR Rated, UL Listed |
| Min. Wire Size | 2 AWG (Al), 4 AWG (Cu) |
| For Use With | Siemens P1 Panelboards |
| Max. Wire Size | 1/0 AWG |
| Application | Electrical Distribution |
| Features | Shunt Trip 120V |
| Compatible Panelboard/Load Center Series | P1 |
| Length (Straight Wireway) | 3.8 in |
| Voltage | 240VAC |
| Length | 3.8 in |
| Mounting | Bolt on |
| Package Quantity | 1 |
