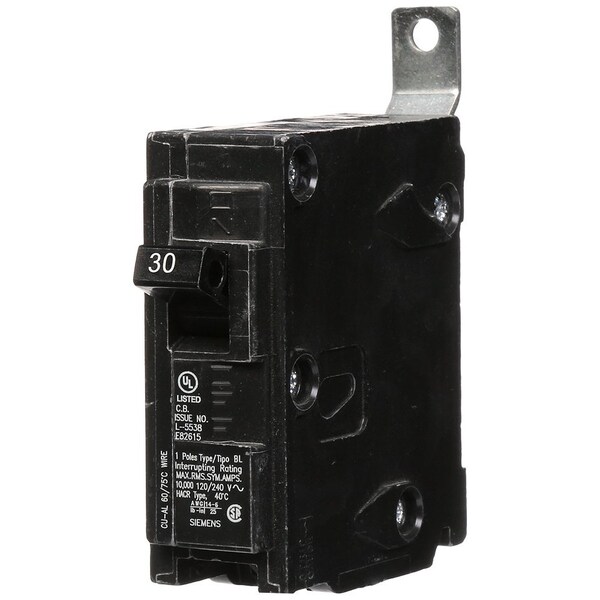

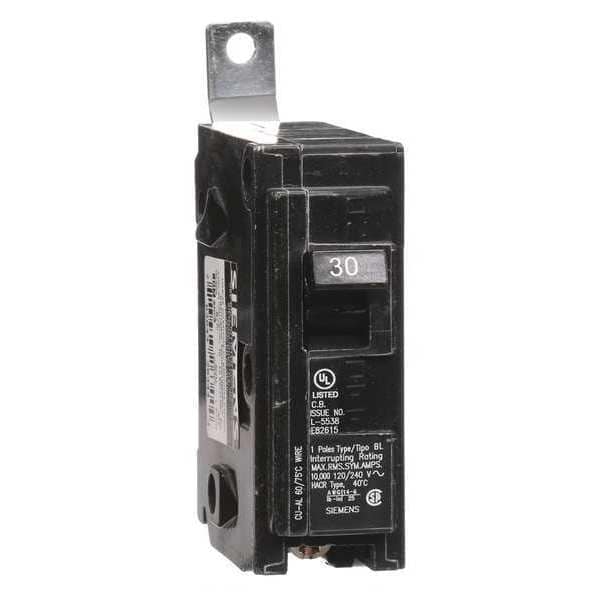

Miniature Circuit Breaker, BL Series, 30A, 1 Pole, 120/240V AC, 10kA at 120/240V AC
| Item | Miniature Circuit Breaker |
|---|---|
| Series | BL |
| Amps | 30A |
| Number of Poles | 1 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | Standard |
| Phase | 1 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Bolt On |
| Max. AIR Rating | 10kA at 120/240V AC |
| Trip Type | Thermal Magnetic |
| Terminal Connection | Lug |
| Frame Size | 125A, BL |
| Width | 1 in |
| Depth | 3 in |
| Height | 1 in |
| DC Voltage Rating | Not Rated |
| Min. Wire Size | 8 AWG |
| For Use With | Siemens P1 Panelboards |
| Standards | UL Listed |
| Max. Wire Size | 4 AWG (Al), 6 AWG (Cu) |
| Application | Electrical Distribution |
| Compatible Panelboard/Load Center Series | P1 |
| Length (Straight Wireway) | 3.57 in |
| Length | 3.57 in |
| Voltage | 120VAC |
| Mounting | Bolt on |
| Package Quantity | 1 |
