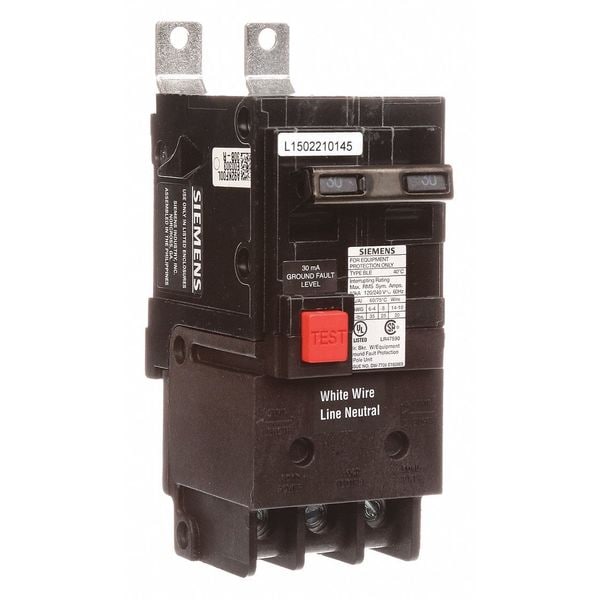

Miniature Circuit Breaker, BLE Series, 30A, 2 Pole, 120/240V AC, 10kA at 120/240V AC
| Item | Miniature Circuit Breaker |
|---|---|
| Series | BLE |
| Amps | 30A |
| Number of Poles | 2 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | Ground Fault Circuit Interrupter |
| Phase | 1 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Bolt On |
| Max. AIR Rating | 10kA at 120/240V AC |
| Terminal Connection | Lug |
| Frame Size | 60A, BLE |
| Width | 3.6 in |
| Depth | 6.2 in |
| Height | 2-1/2 in |
| DC Voltage Rating | Not Rated |
| Max. Wire Size | 6 AWG |
| Standards | CSA Certified, HACR Rated, NOM Certified, UL Listed |
| For Use With | Siemens P1 Panelboards |
| Min. Wire Size | 12 AWG (Al), 14 AWG (Cu) |
| Application | Electrical Distribution |
| Compatible Panelboard/Load Center Series | P1 |
| Length (Straight Wireway) | 2-1/2 in |
| Voltage | 120/240 VAC |
| Length | 2-1/2 in |
| Mounting | Bolt on |
| Package Quantity | 1 |
