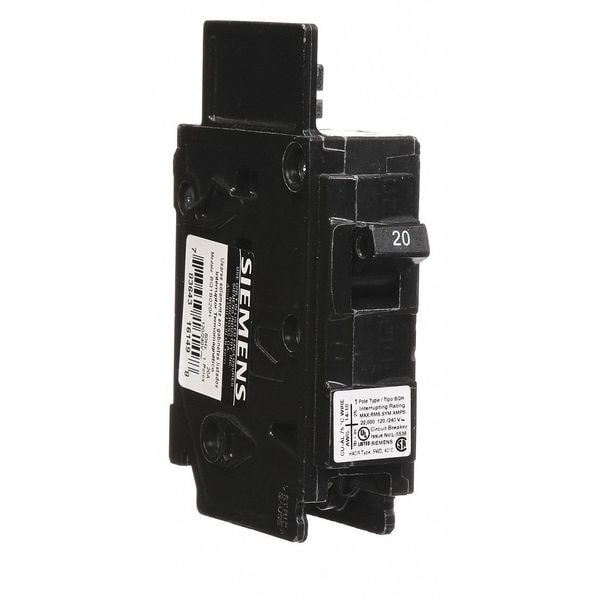

Miniature Circuit Breaker, BQH Series, 20A, 1 Pole, 120V AC, 22kA at 120V AC
| Item | Miniature Circuit Breaker |
|---|---|
| Series | BQH |
| Amps | 20A |
| Number of Poles | 1 |
| AC Voltage Rating | 120V AC |
| Circuit Breaker Type | High Interrupting Capacity |
| Phase | 1 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Bolt On |
| Max. AIR Rating | 22kA at 120V AC |
| Terminal Connection | Lug |
| Frame Size | 125A, BQH |
| Width | 1 in |
| Depth | 3 in |
| Height | 4 in |
| DC Voltage Rating | Not Rated |
| Min. Wire Size | 12 AWG (Al), 14 AWG (Cu) |
| Standards | UL Listed |
| For Use With | Siemens Panelboards |
| Max. Wire Size | 10 AWG |
| Application | Electrical Distribution |
| Length (Straight Wireway) | 4 in |
| Voltage | 120VAC |
| Mounting | Bolt on |
| Length | 4 in |
| Package Quantity | 1 |
