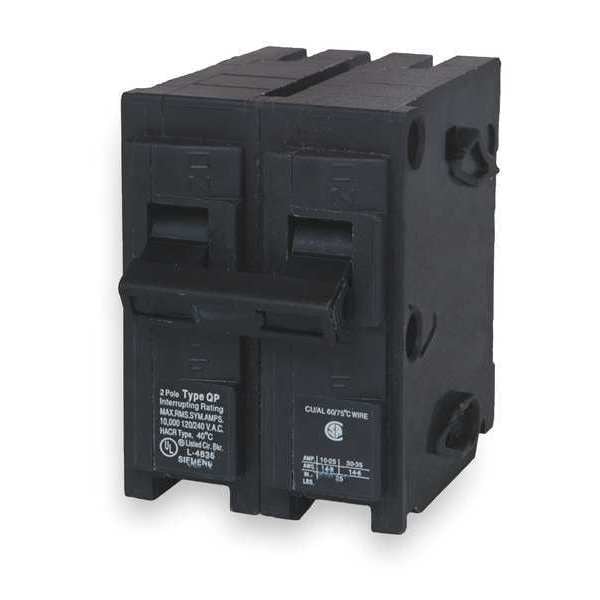

Miniature Circuit Breaker, Q Series, 30A, 2 Pole, 120/240V AC, 10kA at 120V AC
| Item | Miniature Circuit Breaker |
|---|---|
| Series | Q |
| Amps | 30A |
| Number of Poles | 2 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | High Intensity Discharge |
| Phase | 1 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Plug In |
| Max. AIR Rating | 10kA at 120V AC |
| Trip Type | Thermal Magnetic |
| Terminal Connection | Lug |
| Frame Size | 125A, QP |
| Width | 3 in |
| Depth | 3 in |
| Height | 2 in |
| DC Voltage Rating | 48V DC |
| Max. Wire Size | 6 AWG |
| Standards | UL Listed |
| Min. Wire Size | 14 AWG |
| For Use With | Siemens EQ Load Centers |
| Application | Electrical Distribution |
| Features | High-Intensity Discharge |
| Compatible Panelboard/Load Center Series | EQ |
| Length (Straight Wireway) | 2 in |
| Length | 2 in |
| Voltage | 120/240 VAC |
| Package Quantity | 1 |
