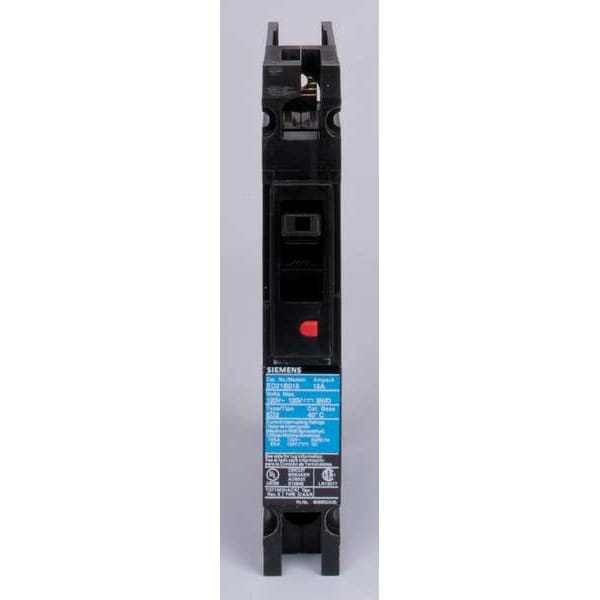

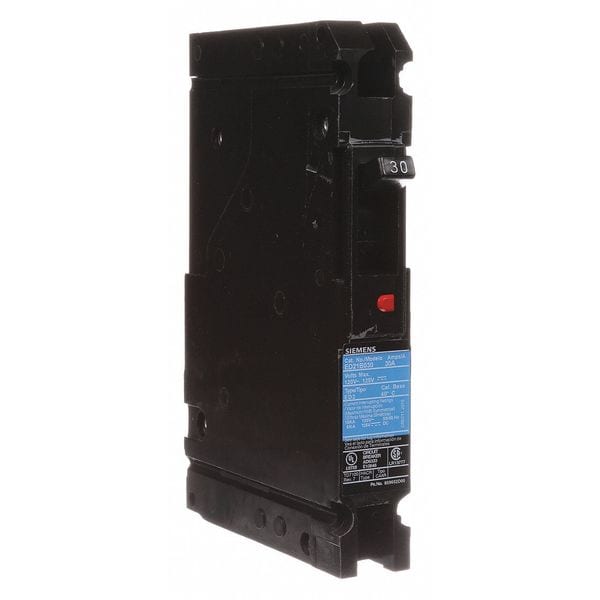

Molded Case Circuit Breaker, ED2 Series, 30A, 1 Pole, 120V AC, 10kA at 120V AC
| Item | Molded Case Circuit Breaker |
|---|---|
| Series | ED2 |
| Amps | 30A |
| Number of Poles | 1 |
| AC Voltage Rating | 120V AC |
| Circuit Breaker Type | Standard |
| Phase | 1 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Lug In Panelboard |
| Max. AIR Rating | 10kA at 120V AC |
| Trip Type | Thermal Magnetic |
| Instantaneous Trip | Fixed |
| Terminal Connection | Load Side Lug |
| Phase Connection | Any |
| Frame Size | 125A/ED |
| Width | 1 in |
| Depth | 4 in |
| Height | 6.34 in |
| DC Voltage Rating | 125V DC |
| High Amp Trip Setting | 30 A |
| For Use With | SB Switchboards, Sentron Panelboards |
| Standards | HACR Rated, UL Listed |
| Min. Wire Size | 10 AWG |
| Max. Wire Size | 4 AWG |
| Low Amp Trip Setting | 30 A |
| Mounting | Lug In Panelboard |
| Package Quantity | 1 |
