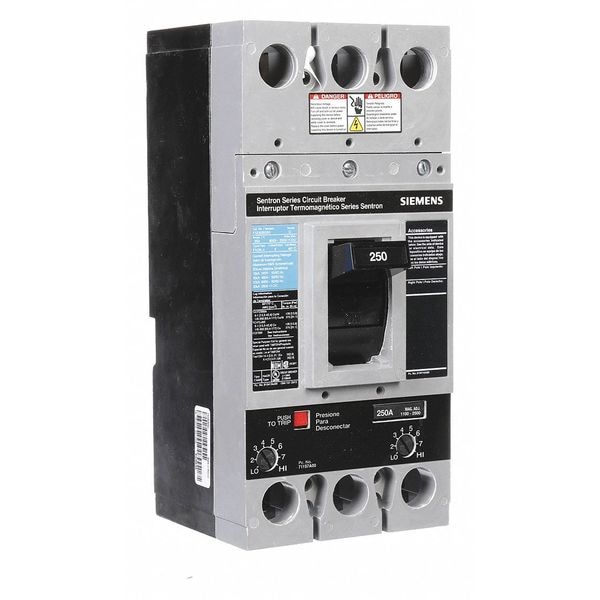

Molded Case Circuit Breaker, FXD6-A Series, 250A, 2 Pole, 600V AC, 22kA at 600V AC
| Item | Molded Case Circuit Breaker |
|---|---|
| Series | FXD6-A |
| Amps | 250A |
| Number of Poles | 2 |
| AC Voltage Rating | 600V AC |
| Circuit Breaker Type | Standard |
| Phase | 1 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Free Standing |
| Max. AIR Rating | 22kA at 600V AC |
| Trip Type | Thermal Magnetic |
| Instantaneous Trip | Fixed |
| Terminal Connection | Lug |
| Phase Connection | ABC |
| Frame Size | 250A, FD |
| Width | 4-1/2 in |
| Depth | 4 in |
| Height | 9-1/2 in |
| DC Voltage Rating | 250V DC |
| High Amp Trip Setting | 250 A |
| Low Amp Trip Setting | 250 A |
| For Use With | SB Switchboards Without Lugs, Sentron Panelboards |
| Standards | UL Listed |
| Mounting | Free Standing |
| Package Quantity | 1 |
