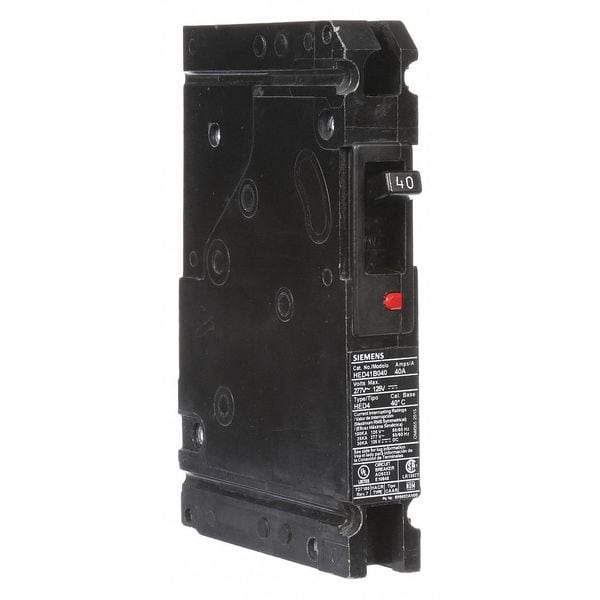

Molded Case Circuit Breaker, HED4 Series, 40A, 1 Pole, 277V AC, 25kA at 277V AC
| Item | Molded Case Circuit Breaker |
|---|---|
| Series | HED4 |
| Amps | 40A |
| Number of Poles | 1 |
| AC Voltage Rating | 277V AC |
| Circuit Breaker Type | High Interrupting Capacity |
| Phase | 1 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Lug In Panelboard |
| Max. AIR Rating | 25kA at 277V AC |
| Trip Type | Thermal Magnetic |
| Instantaneous Trip | Fixed |
| Terminal Connection | Load Side Lug |
| Phase Connection | Any |
| Frame Size | 125A/ED |
| Width | 1 in |
| Depth | 3.92 in |
| Height | 6.35 in |
| DC Voltage Rating | 125V DC |
| Max. Wire Size | 4 AWG |
| For Use With | SB Switchboards, Sentron Panelboards |
| Min. Wire Size | 10 AWG |
| High Amp Trip Setting | 40 A |
| Standards | IEC 60947-2, UL 489 |
| Low Amp Trip Setting | 40 A |
| Mounting | Lug In Panelboard |
| Package Quantity | 1 |
