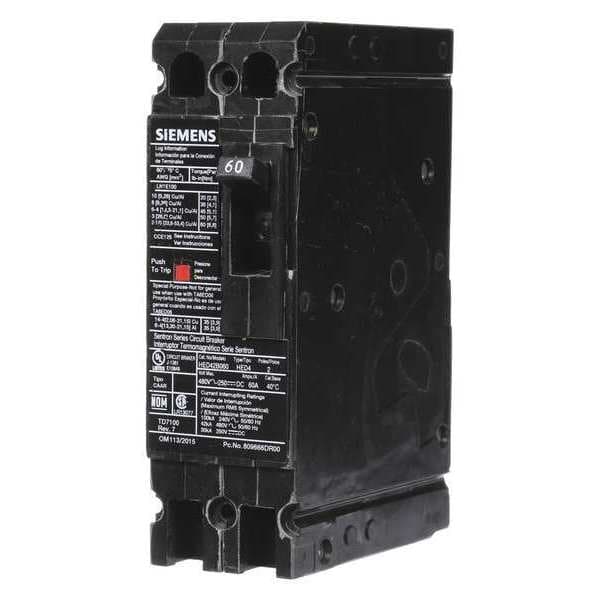

Molded Case Circuit Breaker, HED4 Series, 60A, 2 Pole, 480V AC, 42kA at 480V AC
| Item | Molded Case Circuit Breaker |
|---|---|
| Series | HED4 |
| Amps | 60A |
| Number of Poles | 2 |
| AC Voltage Rating | 480V AC |
| Circuit Breaker Type | High Interrupting Capacity |
| Phase | 1 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Lug In Panelboard |
| Max. AIR Rating | 42kA at 480V AC |
| Trip Type | Thermal Magnetic |
| Instantaneous Trip | Fixed |
| Terminal Connection | Load Side Lug |
| Phase Connection | Any |
| Frame Size | 125A/ED |
| Width | 2 in |
| Depth | 4 in |
| Height | 6.34 in |
| DC Voltage Rating | 250V DC |
| Min. Wire Size | 10 AWG |
| High Amp Trip Setting | 60 A |
| Max. Wire Size | 1/0 AWG |
| Low Amp Trip Setting | 60 A |
| Standards | HACR Rated, UL Listed |
| For Use With | SB Switchboards, Sentron Panelboards |
| Mounting | Lug In Panelboard |
| Package Quantity | 1 |
