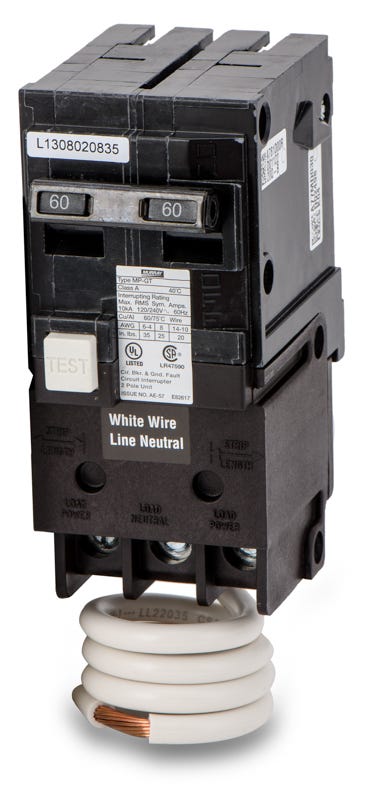

The Siemens MP260GF is a 2 Pole molded case ground fault circuit breaker with a current rating of 60 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC at 240V. The MP260GF has a plug-in connection type and includes long time and instantaneous trip functions.
| Brand | Siemens |
|---|---|
| Series | MP |
| Amperage | 60 |
| Voltage | 120/240VAC |
| Poles | 2 |
| Phase | 1 |
| Mounting Type | Plug-On |
| Approval | UL, CSA |
| Interrupting Rating | 10kAIC at 240V |
| Frame Type | MP |
| Connection Type | Plug-In |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Load Side Lug |
| Standards | HACR |
| Temperature Rating | 40 °C |
| Circuit Breaker Type | GFCI |
| Mpn | MP260GF |
| Upc | 040892529999 |
| Gtin | 040892529999 |
