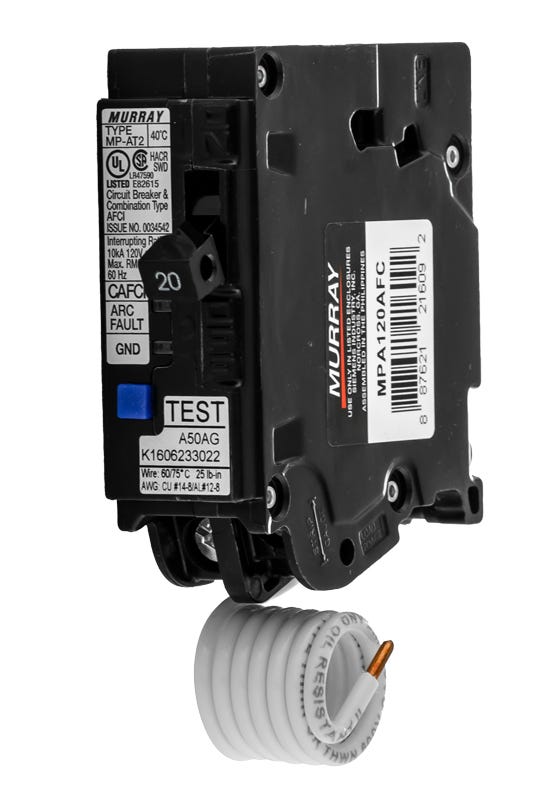

The Siemens MPA120AFC is a 1 Pole molded case combination arc fault circuit breaker with a current rating of 20 Amps and a voltage rating of 120VAC. It has an interrupting rating of 10kAIC@120V. The MPA120AFC has a plug-in connection type and includes long time and instantaneous trip functions.
| Brand | Siemens |
|---|---|
| Series | MP |
| Amperage | 20 |
| Voltage | 120VAC |
| Poles | 1 |
| Phase | 1 |
| Interrupting Rating | 10kAIC@120V |
| Frame Type | MP |
| Connection Type | Plug-In |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Terminal Connection | Load side lug |
| Temperature Rating | 40°C |
| Circuit Breaker Type | CAFCI |
| Mpn | MPA120AFC |
| Upc | 887621216092 |
