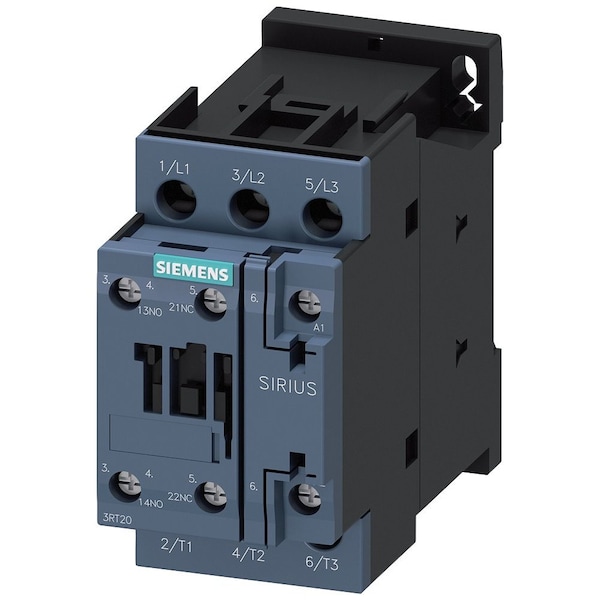

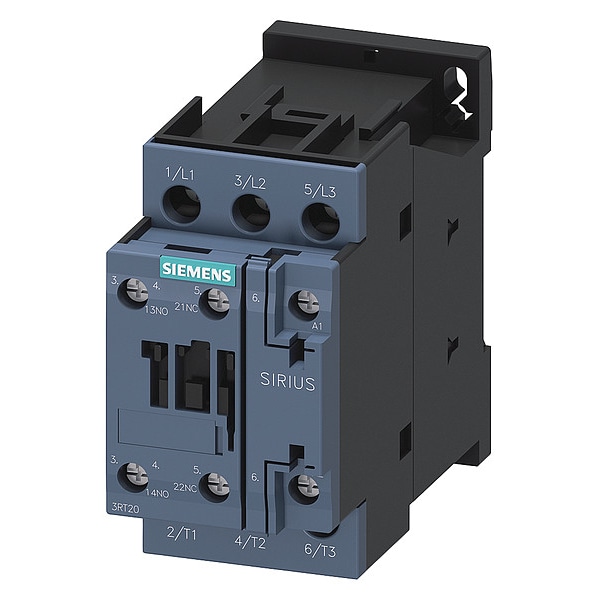

Contactador NEMAMag, no reversible, 480VCA.
| Item | NEMA Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 32 A |
| Full Load Amps-Resistive | 50 A |
| Number of Poles | 3 |
| Coil Volts | 480 V AC |
| HP @ 1 Phase - 120V | 2 hp |
| Height | 85 mm |
| HP @ 1 Phase - 240V | 5 hp |
| HP @ 3 Phase - 208V | 7 1/2 hp |
| Width | 45 mm |
| HP @ 3 Phase - 240V | 7 1/2 hp |
| HP @ 3 Phase - 575V | 10 hp |
| Depth | 97 mm |
| HP @ 3 Phase - 480V | 10 hp |
| Standards | REACH Art 33, WEEE (2012/19/EU) |
| Series | SIRIUS 3RT20 |
| Auxiliary Contact Form | 1NO/1NC |
| Aux. Contact Configuration | 1NO/1NC |
| Hz | 60 |
| Frame / Series / Class / Code | S0 |
| NEMA Size | 1 |
| Rated current [In] for the power loss specification | 27 ampere |
| Rated operating current Ie with AC-3, 400 V | 27 ampere |
| max. rated AC voltage for controls (60 Hz) | 480 V |
| rated operational power AC-1 at 400 V | 28 kilowatt |
| Connection type | Screw connection |
| Power loss per pole, current-dependent [PlIp] | 2.3 W |
| suitable for series installation | Yes |
| Rated operating power with AC-3, 400 V | 15 kilowatt |
| Number of making contacts and main contacts | 3 |
| Power loss, static, current-independent [Pls] | 9.4 W |
| Terminal Connection Type | Screw Terminals |
| Contactor Style | NEMA |
| Mounting Hole Diameter | 0.19 in |
| Number of Normally Open Main Contacts | 3 |
| Overall Width | 4 in |
| Mounting Postion | Vertical |
| Overall Height | 2 in |
| Mounting Hole Distance - Height | 2.36 in |
| Phase | Three |
| Embedded Surge Suppressor | No |
| Full Load Current - Resistive | 50 A |
| Horsepower @ Three Phase - 240V AC | 7.5 HP |
| Horsepower @ Three Phase - 480V AC | 10 HP |
| Minimum Operating Temperature | -13 deg F |
| Mounting Style | DIN Rail, Surface |
| NEMA Enclosure Rating | No Enclosure |
| Coil Voltage | 480V AC |
| IP Rating | IP20 |
| Horsepower @ Three Phase - 600V AC | 25 HP |
| Maximum Voltage Rating | 690 V AC |
| Mechanical Operating Durability | 10,000,000 |
| Maximum Operating Temperature | 140 deg F |
| Frame Size | S0 |
| Horsepower @ Single Phase - 240V AC | 5 HP |
| Reversing Capability | Non-Reversing |
| Horsepower @ Single Phase - 120V AC | 2 HP |
| Overall Depth | 4 in |
| Horsepower @ Three Phase - 208V AC | 7.5 HP |
| Includes Auxiliary Contacts | Yes |
| Mounting Hole Distance - Width | 1.38 in |
| Frequency | 60 Hz |
| Full Load Current - Inductive | 32 A |
| Response Time | 4 to 16 msec (Opening Delay at AC), 8 to 40 msec (Closing Delay at AC) |
| Number of Auxillary Contacts | 2 |
| Package Quantity | 1 |
