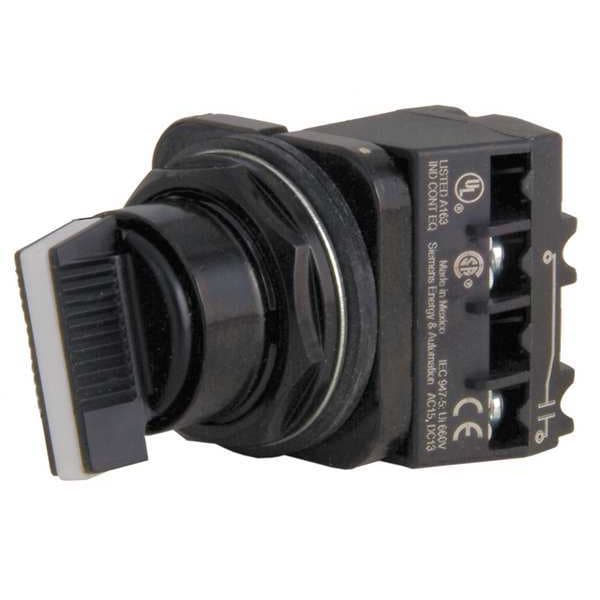

Interruptor selecto no iluminado, 30mm, 2 posiciones, palanca.
| Item | Selector Switch |
|---|---|
| Size | 30 mm |
| Basic Material | Metal |
| Type of Operator | Lever |
| Contact Form | 1NO/1NC |
| Action | Maintained |
| Operator Head Material | Plastic |
| Cam | A |
| Color | Black |
| NEMA Rating | 1, 12, 13, 3, 3R, 4, 4X |
| Position | 2 |
| Bezel Material | Zinc |
| Bezel Color | Silver |
| Key Removal | No Key |
| Standards | REACH Art. 33 |
| Switch Operation @ Position B | OX |
| Switch Operation @ Position C | No Third Position |
| Contact Rating | 10A @ 600V AC |
| IP Rating | IP66, IP20 |
| Switch Operation @ Position D | No Fourth Position |
| NEMA Contact Rating Designation | Not Rated |
| Switch Operation @ Position A | XO |
| Lamp Type | Not Applicable |
| Lamp Module Type | Not Applicable |
| Series | 52SX |
| AC Contact Rating | 10 A @ 600 V |
| DC Contact Rating | 5 A @ 600 V |
| Contact Block Material | Metal |
| Lamp Voltage - Maximum | Not Applicable |
| Switch Function @ 1st Position | On |
| Switch Function @ 3rd Position | No Third Position |
| Switch Function @ 2nd Position | Off |
| Number of Positions | 2 |
| Metal Operator Head Finish | Not Applicable |
| Includes Operator Key | Not Applicable |
| Operator Illumination | Non-Illuminated |
| Operator Head Color | Black |
| Operator Head Type | Short-Handled Knob |
| Key Removal Position | Not Applicable |
| Panel Cutout Diameter | 30 mm |
| Hazardous Location Specification | Not Rated |
| NEMA Enclosure Rating | 4X |
| Switch Function @ 4th Position | No Fourth Position |
| Package Quantity | 1 |
