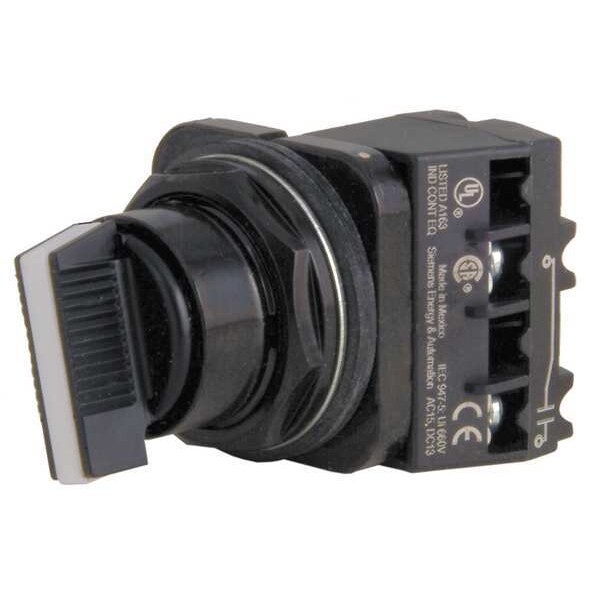

Interruptor selectror no iluminado, de 30mm, 3 posiciones, palanca
| Item | Selector Switch |
|---|---|
| Size | 30 mm |
| Basic Material | Metal |
| Type of Operator | Lever |
| Contact Form | 1NO/1NC |
| Action | Maintained |
| Operator Head Material | Plastic |
| Cam | C |
| Color | Black |
| NEMA Rating | 1, 12, 13, 3, 3R, 4, 4X |
| Bezel Material | Zinc |
| Position | 3 |
| Bezel Color | Black |
| Key Removal | No Key |
| NEMA Contact Rating Designation | Not Rated |
| Switch Operation @ Position C | OX |
| Switch Operation @ Position B | OO |
| Switch Operation @ Position D | No Fourth Position |
| Standards | REACH Art. 33, UL E22655 Vol. 6 (7) Sec. 13 (2) |
| Contact Rating | 10A @ 600V AC |
| IP Rating | IP66, IP20 |
| Switch Operation @ Position A | XO |
| Lamp Type | Not Applicable |
| Lamp Module Type | Not Applicable |
| Series | 52SW |
| DC Contact Rating | 5 A @ 600 V |
| AC Contact Rating | 10 A @ 600 V |
| Operator Head Color | Black |
| NEMA Enclosure Rating | 4X |
| Key Removal Position | Not Applicable |
| Lamp Voltage - Maximum | Not Applicable |
| Metal Operator Head Finish | Not Applicable |
| Panel Cutout Diameter | 30 mm |
| Switch Function @ 2nd Position | On |
| Operator Head Type | Long-Handled Knob |
| Switch Function @ 1st Position | On |
| Switch Function @ 3rd Position | Off |
| Number of Positions | 3 |
| Contact Block Material | Metal |
| Hazardous Location Specification | Not Rated |
| Operator Illumination | Non-Illuminated |
| Switch Function @ 4th Position | No Fourth Position |
| Includes Operator Key | Not Applicable |
| Package Quantity | 1 |
