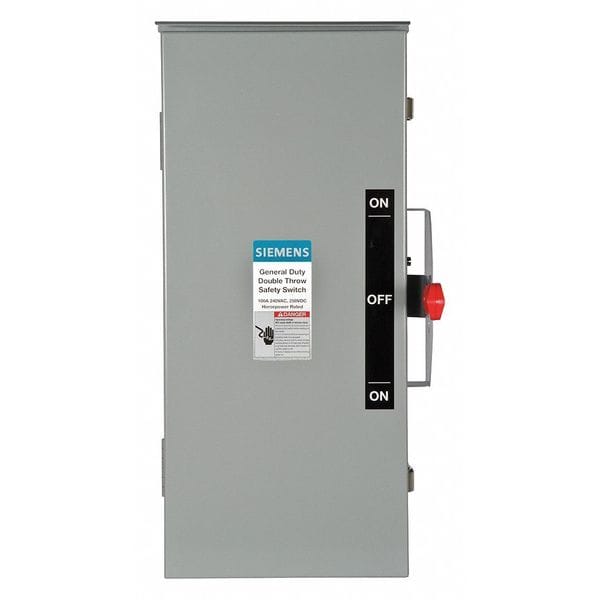

Interruptor de Seguridad No Fusible, Uso General, 240V CA, 3PST, 100 A, NEMA 3R
| Item | Safety Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | General |
| Voltage | 240V AC |
| Phase | 3 |
| HP | 40 HP @ 240 V AC |
| NEMA Enclosure Type | 3R |
| IP Rating | 14 |
| Number of Wires | 3 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Amps AC | 100 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Galvanized Steel |
| Fusible / Nonfusible | Nonfusible |
| Standards | UL146 |
| Depth | 8-1/2 in |
| Height | 27.6 in |
| Width | 14.2 in |
| Enclosure Type | Enclosed |
| Minimum Enclosure Depth | 12.18 in |
| Mounting Style | Surface Mount |
| Environment | Indoor, Outdoor |
| Current Rating | 100 A |
| NEMA Enclosure Rating | 3R |
| Housing Material | Steel |
| Maximum Mounting Depth | 19.36 in |
| Horsepower @ 240V AC | 40 HP |
| Maximum Enclosure Depth | 27.62 in |
| Number of Mounting Holes | 3 |
| Minimum Mounting Depth | 8 in |
| For Fuse Class | Not Applicable |
| Package Quantity | 1 |
