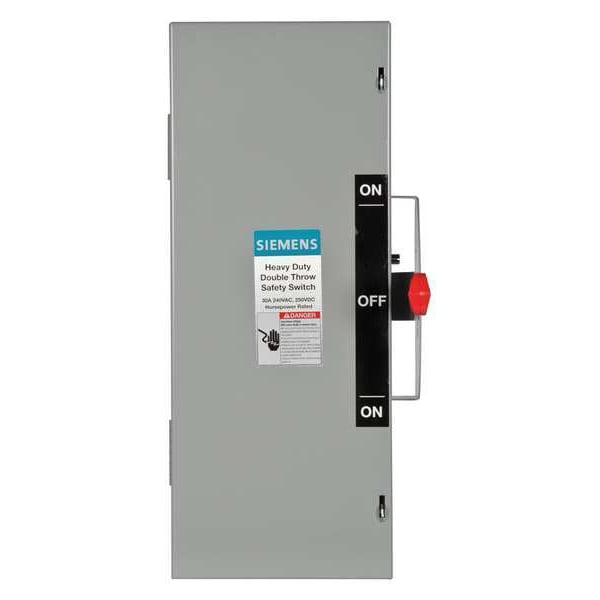

Interruptor de Seguridad No Fusible, Servicio Pesado, 240V AC, 2PDT, 30 A, NEMA 1
| Item | Safety Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | Heavy |
| Voltage | 240V AC |
| Phase | 1 |
| HP | 10 HP @ 240 V AC |
| NEMA Enclosure Type | 1 |
| IP Rating | 20 |
| Number of Wires | 3 |
| Number of Poles | 2 |
| Contact Form | 2PDT |
| Amps AC | 30 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Steel |
| Depth | 8-1/2 in |
| Height | 25 in |
| Fusible / Nonfusible | Nonfusible |
| Width | 11-1/2 in |
| Standards | UL98 |
| Mounting | Surface |
| Enclosure Type | Enclosed |
| Use | Load Transfer Between Power Sources |
| Electrical Connection | Lugs |
| Environment | Indoor |
| Number of Mounting Holes | 3 |
| Housing Material | Steel |
| Mounting Style | Surface Mount |
| Maximum Mounting Depth | 19 in |
| Current Rating | 30 A |
| For Fuse Class | Not Applicable |
| Minimum Enclosure Depth | 9.53 in |
| Maximum Enclosure Depth | 24-1/2 in |
| Horsepower @ 240V AC | 10 HP |
| NEMA Enclosure Rating | 1 |
| Minimum Mounting Depth | 6-3/4 in |
| Package Quantity | 1 |
