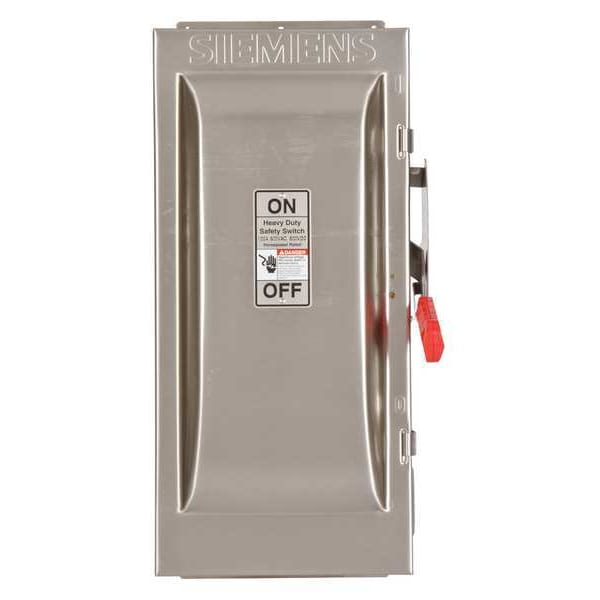

Interruptor de seguridad no fusible, servicio pesado, 600V AC, 3 polos, 100 A, NEMA 4.
| Item | Safety Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | Heavy |
| Voltage | 600V AC |
| Phase | 3 |
| HP | 100 HP @ 600 V AC |
| NEMA Enclosure Type | 4 |
| IP Rating | 65 |
| Number of Wires | 3 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Amps AC | 100 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | 316 Stainless Steel |
| Width | 12 in |
| Depth | 8.4 in |
| Fusible / Nonfusible | Nonfusible |
| Standards | UL98 |
| Height | 23.1 in |
| Enclosure Type | Enclosed |
| Use | Disconnecting Mean For Service Entrance/Loads |
| Electrical Connection | Lugs |
| Mounting | Surface |
| For Fuse Class | Not Applicable |
| Number of Mounting Holes | 3 |
| NEMA Enclosure Rating | 4, 4X |
| Mounting Style | Surface Mount |
| Environment | Indoor, Outdoor |
| Resistance Properties | Corrosion-Resistant |
| Current Rating | 100 A |
| Housing Material | Stainless Steel |
| Horsepower @ 600V AC | 100 HP |
| Package Quantity | 1 |
