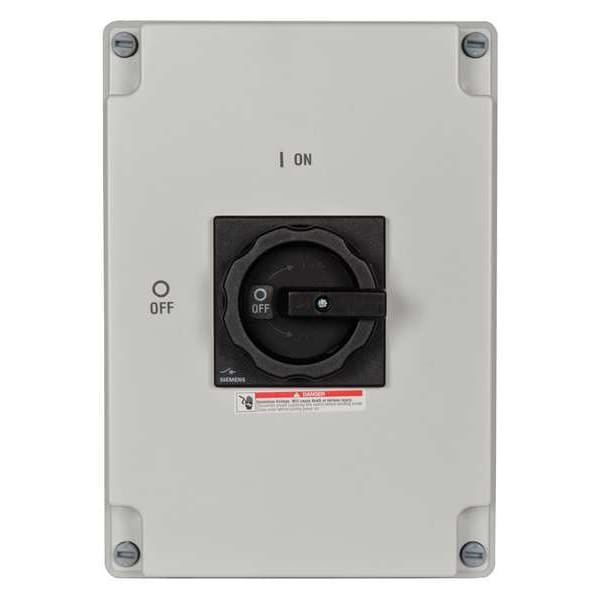

Interruptor de seguridad no fusible, trabajo pesado, 600V CA, 3PST, 125 A, NEMA 1, 12K, 4X.
| Item | Safety Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | Heavy |
| Voltage | 600V AC |
| Phase | 3 |
| HP | 100 HP @ 600 V AC |
| NEMA Enclosure Type | 1, 4X |
| IP Rating | 65 |
| Number of Wires | 3 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Amps AC | 125 A |
| Metallic / Non-Metallic | Non-Metallic |
| Material of Construction | Polycarbonate |
| Width | 8.4 in |
| Height | 11.9 in |
| Fusible / Nonfusible | Nonfusible |
| Standards | UL/CSA/CE |
| Depth | 7.1 in |
| Electrical Connection | Frame Clamp |
| Handle Color | Black |
| Enclosure Type | Enclosed |
| Neutral Assembly Included | Yes |
| For Environment | Indoor & Outdoor Rated, Indoor Rated |
| Current Rating | 125 A |
| UL 508 Certification | Yes |
| Horsepower @ 600V AC | 100 HP |
| For Fuse Class | Not Applicable |
| Environment | Indoor, Outdoor |
| Resistance Properties | Impact-Resistant, UV-Resistant |
| Housing Material | Plastic |
| NEMA Enclosure Rating | 1, 12, 4X |
| Handle Type | Rotary |
| Standard Conduit Size | 3/4 in |
| Package Quantity | 1 |
