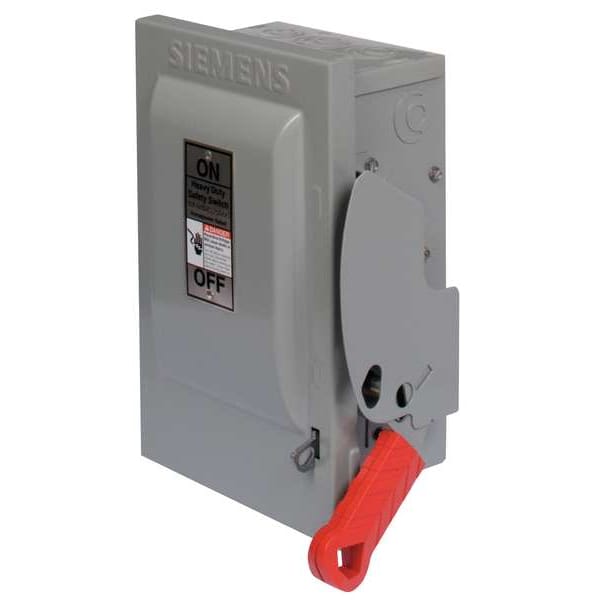

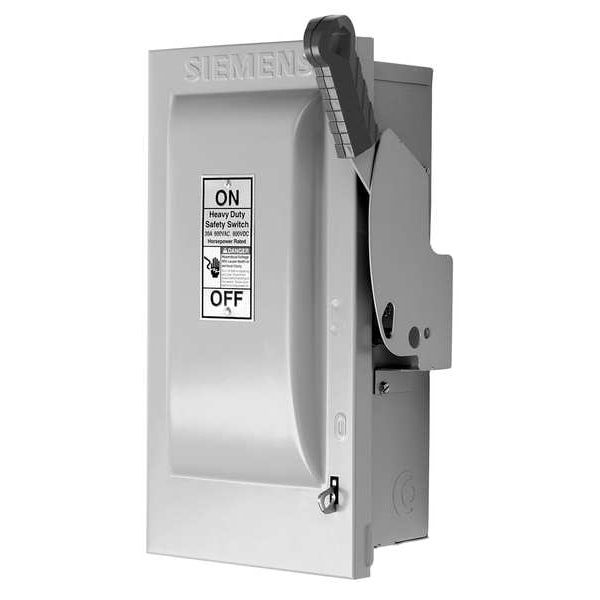

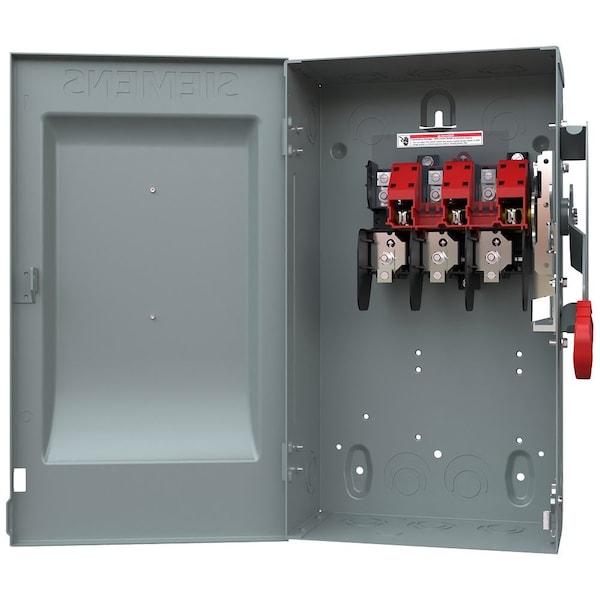

Interruptor de Seguridad No Fusible, de Alta Resistencia, 600V AC, 3PST, 30 A, NEMA 1
| Item | Safety Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | Heavy |
| Voltage | 600V AC |
| Phase | 3 |
| HP | 30 HP @ 600 V AC |
| NEMA Enclosure Type | 1 |
| IP Rating | 20 |
| Number of Wires | 3 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Amps AC | 30 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Steel |
| Standards | UL listed |
| Depth | 4.9 in |
| Fusible / Nonfusible | Nonfusible |
| Height | 14.6 in |
| Width | 7-1/2 in |
| Features | On/Off Handle Indication |
| Enclosure Type | Enclosed |
| For Fuse Class | Not Applicable |
| Housing Material | Steel |
| Environment | Indoor |
| Number of Mounting Holes | 3 |
| Horsepower @ 600V AC | 30 HP |
| Mounting Style | Surface Mount |
| Current Rating | 30 A |
| NEMA Enclosure Rating | 1 |
| Package Quantity | 1 |
