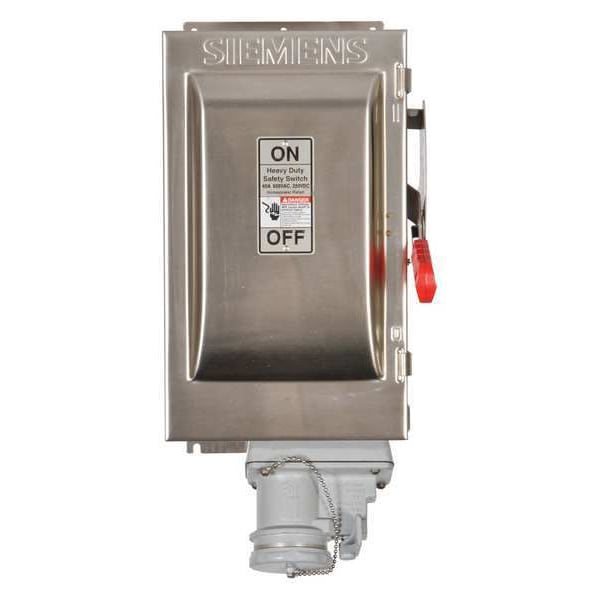

Interruptor de seguridad no fusible, servicio pesado, 600V CA, 3 polos, 30 A, NEMA 4
| Item | Safety Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | Heavy |
| Voltage | 600V AC |
| Phase | 3 |
| HP | 7-1/2 HP @ 600 V AC |
| NEMA Enclosure Type | 4 |
| IP Rating | 65 |
| Number of Wires | 3 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Amps AC | 30 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | 304 Stainless Steel |
| Depth | 8-1/2 in |
| Fusible / Nonfusible | Nonfusible |
| Width | 7.4 in |
| Standards | UL98 |
| Height | 12.3 in |
| Mounting | Surface |
| Use | Protection of Heavy Duty Portable Equipment |
| Electrical Connection | Interlocked Plug |
| Enclosure Type | Enclosed |
| Features | Crouse-Hinds Arktite(R) Compatible Receptacle |
| Housing Material | Stainless Steel |
| NEMA Enclosure Rating | 4, 4X |
| Environment | Indoor, Outdoor |
| Current Rating | 30 A |
| For Fuse Class | Not Applicable |
| Includes Interlocked Receptacle | Yes |
| Mounting Style | Surface Mount |
| Horsepower @ 600V AC | 7.5 HP |
| Package Quantity | 1 |
