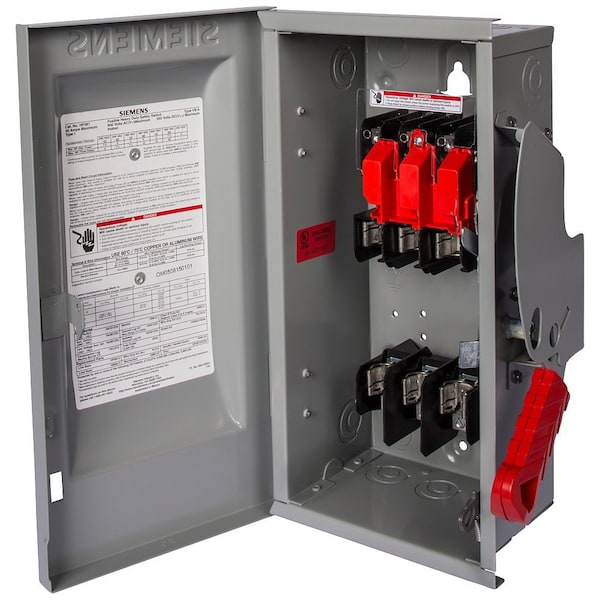

Interruptor de Desconexión de Seguridad Solar No Fusible, 600V AC/DC, NEMA 3R
| Item | Solar Safety Disconnect Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | Heavy Duty |
| Amps | 30 |
| Voltage | 600V AC/DC |
| Phase | 3 |
| NEMA Enclosure Type | 3R |
| IP Rating | 20 |
| Number of Wires | 3 |
| Material | STEEL |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Material of Construction | Aluminum Alloy |
| Height | 11.1 in |
| Indoor / Outdoor | Outdoor |
| Standards | CUL Listed (File E4776), UL Approved, UL98 Certified |
| Width | 6.6 in |
| Fusible / Nonfusible | Nonfusible |
| Ground Polarity | Negative |
| Depth | 5.1 in |
| Enclosure Type | Enclosed |
| Type | HEAVY DUTY SWITCH |
| Features | Photovoltaic Rated |
| Mounting | SURFACE |
| Electrical Connection | Mechanical Lugs |
| Contact Material | Aluminum Alloy |
| Current Rating | 30 A |
| NEMA Enclosure Rating | 3 R |
| Mounting Style | Surface Mount |
| For Fuse Class | Not Applicable |
| UL 98B Certification | Yes |
| Housing Material | Steel |
| Environment | Indoor, Outdoor |
| For Environment | Indoor, Outdoor |
| Enclosure | TYPE 3R |
| Standard | UL98 |
| Connection | MECHANICAL LUGS |
| Amperage Rating | 30 |
| Actuator | SINGLE THROW |
| Operating Cycles | 10000 |
| Special features | PHOTOVOLTAIC RATED |
| Application | DISCONNECTING MEAN FOR SERVICE ENTRANCE / LOADS |
| Package Quantity | 1 |
