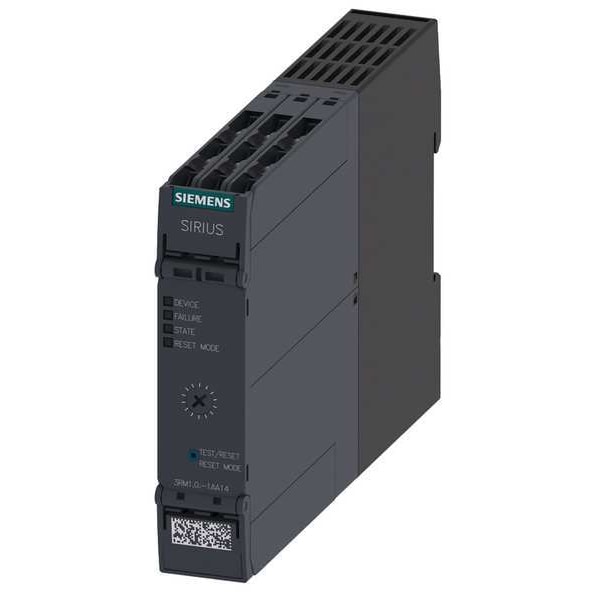

Arrancador de motor magnético compacto de una sola dirección, sin cubierta NEMA, de 110 a 240V CA/CC, 3 polos.
| Item | Compact Magnetic Motor Starter |
|---|---|
| Overload Relay Amp Setting | 0.4 to 2.0 |
| Coil Volts | 110 to 240V AC/DC |
| Enclosure NEMA Rating | No Enclosure |
| Auxiliary Contact Form | 1NO, 1NC |
| HP @ 3 Phase - 240V | 0.3333 HP |
| Action | Nonreversing |
| Amps AC | 2 A |
| NEMA Size | Not Applicable |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 0.75 HP |
| HP @ 3 Phase - 208V | 0.3333 HP |
| Depth | 5.57 in |
| Height | 3.94 in |
| Standards | CCC, CE, CSA, EAC, RCM, UL Listed |
| Width | 0.89 in |
| Features | Screw Type Connection |
| Accessory Group | Auxiliary Contacts, Manual Starter Accessory |
| Hz | 50/60 |
| Thermal Unit Code | Not Applicable |
| Maximum Overload Relay Current Setting | 2 A |
| Mounting Postion | Vertical, Horizontal |
| Response Time | 60 to 90 msec, 60 to 90 msec |
| Includes Pilot Light | Yes |
| Number of Auxillary Contacts | 2 |
| Horsepower @ Three Phase - 208V AC | 0.3333 HP |
| Maximum Voltage Rating | 480 V AC |
| Frequency | 50/60 Hz |
| Reversing Capability | Non-Reversing |
| NEMA Enclosure Rating | No Enclosure |
| Mechanical Operating Durability | 30,000,000 |
| Series | 3RM1 |
| Starter Style | IEC |
| Current AC | 2 A |
| Overall Depth | 5.57 in |
| Resistance Properties | Shock Resistant, Vibration Resistant |
| Minimum Operating Temperature | -13 deg F |
| Minimum Overload Relay Current Setting | 0.4 A |
| IP Rating | IP20 |
| Mounting Style | DIN Rail |
| Coil Voltage | 110-230V AC |
| Horsepower @ Three Phase - 480V AC | 0.75 HP |
| Maximum Operating Temperature | 140 deg F |
| Overall Width | 1.42 in |
| Overall Height | 6.58 in |
| Includes Auxiliary Contacts | Yes |
| Terminal Connection Type | Screw Terminals |
| Horsepower @ Three Phase - 240V AC | 0.33 HP |
| Overload Protection Type | Electronic |
| Trip Class | 10A |
| Package Quantity | 1 |
