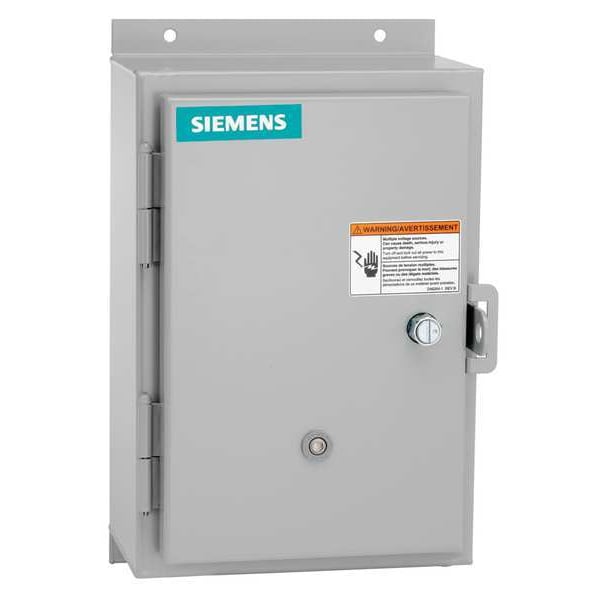

Arrancador magnético NEMA sin inversión, clasificación NEMA 12, 120 a 240V CA, 3 polos, 1NC.
| Item | NEMA Magnetic Motor Starter |
|---|---|
| Overload Relay Amp Setting | 0.25 to 1 A |
| Coil Volts | 120 to 240V AC |
| Enclosure NEMA Rating | 12 |
| Auxiliary Contact Form | 1NO |
| HP @ 3 Phase - 240V | 0.1667 HP |
| Starter Type | NEMA Style |
| Action | Nonreversing |
| Amps AC | 18 A |
| NEMA Size | 0 |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 0.3333 HP |
| HP @ 3 Phase - 575V | 1/2 hp |
| Depth | 5 in |
| Standards | eClass Ver. 12 Class 27-37-09-05, eClass Ver. 6 Class 27-37-09-05, eClass Ver. 7.1 Class 27-37-09-05, eClass Ver. 8 Class 27-37-09-05, eClass Ver. 9 Class 27-37-09-05, eClass Ver. 9.1 Class 27-37-09-05, ETIM Ver. 7 Class EC001037, ETIM Ver. 8 Class EC001037, IDEA Ver. 4 Class 4734, UNSPSC Ver. 15 Class 39-12-15-21 |
| Width | 8 in |
| Height | 13 in |
| Hz | 50/60 |
| HP @ 3 Phase - 208V | 0.1667 HP |
| Thermal Unit Code | Not Applicable |
| Trip Class | 5/10/20/30 |
| Horsepower @ Three Phase - 240V AC | 0.17 HP |
| Overall Height | 13 in |
| Number of Auxillary Contacts | 1 |
| Mounting Hole Diameter | 0.28 in |
| Coil Voltage | 110-120/220-240V AC |
| Mounting Hole Distance - Height | 12-1/4 in |
| Mounting Hole Distance - Width | 5 in |
| Overall Width | 8 in |
| Maximum Overload Relay Current Setting | 1 A |
| Minimum Overload Relay Current Setting | 0.25 A |
| Mounting Postion | Vertical |
| NEMA Enclosure Rating | 12 |
| Terminal Connection Type | Screw Terminals |
| Horsepower @ Three Phase - 600V AC | 0.5 HP |
| Horsepower @ Three Phase - 480V AC | 0.3333 HP |
| Series | FVNR |
| Starter Style | NEMA |
| Horsepower @ Three Phase - 208V AC | 0.17 HP |
| Maximum Voltage Rating | 600 V AC |
| Minimum Operating Temperature | -4 deg F |
| Current AC | 18 A |
| Auxiliary Contact Module Capacity | 8 |
| Maximum Operating Temperature | 104 deg F |
| Includes Auxiliary Contacts | Yes |
| Overload Protection Type | Electronic |
| Mechanical Operating Durability | 10,000,000 |
| Mounting Style | Surface |
| Overall Depth | 5 in |
| Reversing Capability | Non-Reversing |
| Phase | Three |
| Response Time | 10 to 24 msec, 19 to 29 msec |
| Frequency | 60 Hz |
| Package Quantity | 1 |
