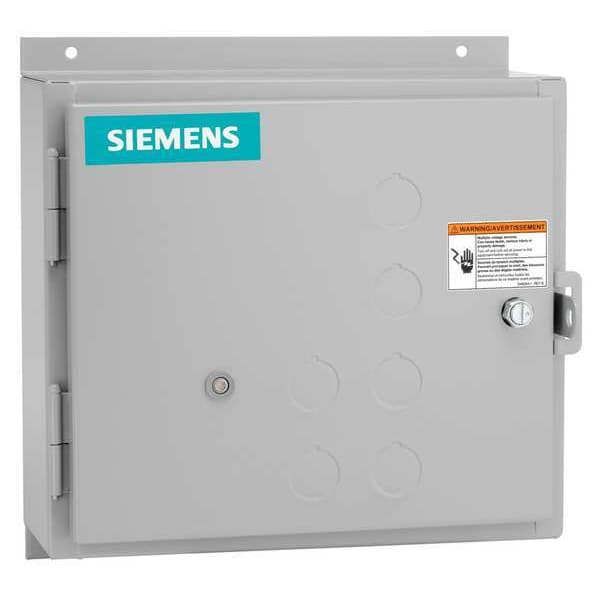

Arrancador magnético NEMA no reversible, calificación 12 NEMA, 24V CA, 3 polos, 1 contacto normalmente abierto.
| Item | NEMA Magnetic Motor Starter |
|---|---|
| Overload Relay Amp Setting | 50 to 200 A |
| Coil Volts | 24V AC |
| Enclosure NEMA Rating | 12 |
| Auxiliary Contact Form | 1NO |
| HP @ 3 Phase - 240V | 50 HP |
| Starter Type | NEMA Style |
| Action | Nonreversing |
| Amps AC | 135 A |
| NEMA Size | 4 |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 100 HP |
| Hz | 50/60 |
| HP @ 3 Phase - 208V | 40 HP |
| Depth | 8 in |
| Standards | CSA 22.2 No.14, NEMA ICS 2, UL 508 |
| HP @ 3 Phase - 575V | 100 hp |
| Height | 26 in |
| Width | 13 in |
| Thermal Unit Code | Not Applicable |
| Reversing Capability | Non-Reversing |
| Frequency | 50/60 Hz |
| Overall Height | 26 in |
| Current AC | 135 A |
| Mounting Style | Surface |
| Minimum Overload Relay Current Setting | 50 A |
| Includes Auxiliary Contacts | Yes |
| Horsepower @ Three Phase - 600V AC | 100 HP |
| Number of Auxillary Contacts | 1 |
| Coil Voltage | 24V AC |
| Trip Class | 5/10/20/30 |
| Mounting Postion | Vertical |
| NEMA Enclosure Rating | 12 |
| Mechanical Operating Durability | 10,000,000 |
| Horsepower @ Three Phase - 208V AC | 40 HP |
| Overload Protection Type | Electronic |
| Phase | Three |
| Auxiliary Contact Module Capacity | 8 |
| Response Time | 10 to 24 msec, 19 to 29 msec |
| Maximum Overload Relay Current Setting | 200 A |
| Starter Style | NEMA |
| Horsepower @ Three Phase - 240V AC | 50 HP |
| Minimum Operating Temperature | -4 deg F |
| Maximum Operating Temperature | 104 deg F |
| Terminal Connection Type | Screw Terminals |
| Overall Width | 13 in |
| Maximum Voltage Rating | 600 V AC |
| Overall Depth | 8 in |
| Horsepower @ Three Phase - 480V AC | 100 HP |
| Package Quantity | 1 |
