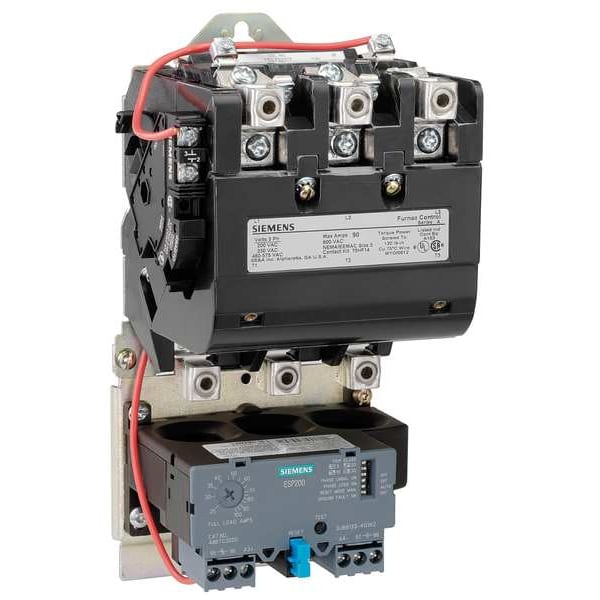

Arrancador magnético NEMA no reversible, Clasificación NEMA sin gabinete, 120V CA, 3 polos, 1NO.
| Item | NEMA Magnetic Motor Starter |
|---|---|
| Overload Relay Amp Setting | 25 to 100 A |
| Coil Volts | 120V AC |
| Enclosure NEMA Rating | No Enclosure |
| Auxiliary Contact Form | 1NO |
| HP @ 3 Phase - 240V | 30 HP |
| Starter Type | NEMA Style |
| Action | Nonreversing |
| Amps AC | 90 A |
| NEMA Size | 3 |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 50 HP |
| HP @ 3 Phase - 575V | 50 hp |
| Standards | CSA 22.2 No.14, NEMA ICS 2, UL 508 |
| HP @ 3 Phase - 208V | 25 HP |
| Width | 4-1/2 in |
| Height | 9.78 in |
| Depth | 5.19 in |
| Hz | 50/60 |
| Thermal Unit Code | Not Applicable |
| Response Time | 14 to 19 msec, 26 to 41 msec |
| Maximum Overload Relay Current Setting | 100 A |
| Current AC | 90 A |
| Series | FVNR |
| Starter Style | NEMA |
| Horsepower @ Three Phase - 208V AC | 25 HP |
| Number of Auxillary Contacts | 1 |
| NEMA Enclosure Rating | No Enclosure |
| Overload Protection Type | Electronic |
| Maximum Operating Temperature | 104 deg F |
| Horsepower @ Three Phase - 480V AC | 50 HP |
| Horsepower @ Three Phase - 240V AC | 30 HP |
| Terminal Connection Type | Screw Terminals |
| Mounting Style | Surface |
| Reversing Capability | Non-Reversing |
| Trip Class | 5/10/20/30 |
| Overall Height | 9.78 in |
| Minimum Overload Relay Current Setting | 25 A |
| Mechanical Operating Durability | 50,000,000 |
| Includes Auxiliary Contacts | Yes |
| Overall Width | 6-3/4 in |
| Minimum Operating Temperature | -4 deg F |
| Frequency | 50/60 Hz |
| Mounting Postion | Vertical |
| Auxiliary Contact Module Capacity | 7 |
| Horsepower @ Three Phase - 600V AC | 50 HP |
| Phase | Three |
| Maximum Voltage Rating | 600 V AC |
| Overall Depth | 5.19 in |
| Coil Voltage | 110/120V AC |
| Package Quantity | 1 |
