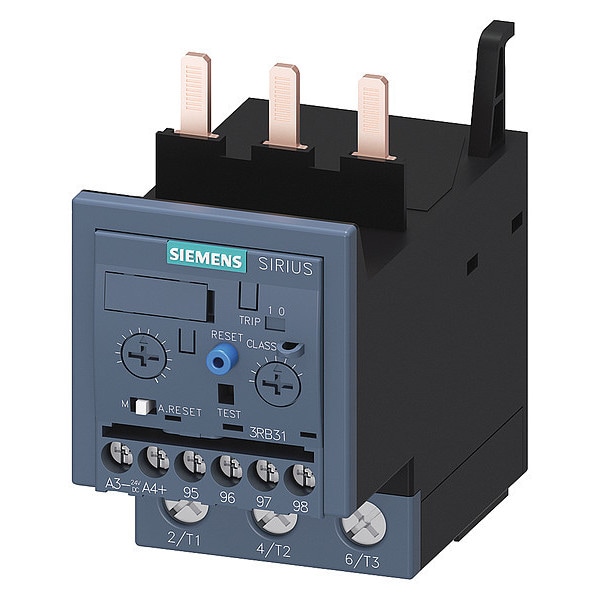

Relé de sobrecarga, utilizar con la Serie del fabricante 3RT203.
| Item - Relay | IEC Style Overload Relay |
|---|---|
| Item | Overload Relay |
| Use With - Contactors and Starters | Mfr. Series 3RT203 Contactors |
| Overload Relay Current Range | 20 to 80 A |
| NEMA Size | Not Applicable |
| Trip Class - Overload | 10E, 20E, 30E, 5E |
| Number of Poles | 3 |
| Frame / Series / Class / Code | S2 |
| Reset Type - Relay | Manual, Auto |
| Sensing Method | Electronic |
| Separate Mounting | Yes, Additional Items Needed |
| Body Height - Relay | 3.3 in |
| Standards | Lead CAS-No. 7439-92-1 Greater Than 0, 1 % (w/w), REACH Art 33 Duty to Inform According to the Current List of Candidates, RoHS 07/01/2006, WEEE (2012/19/EU) Take-Back Obligation |
| Body Depth - Relay | 4.09 in |
| Body Width - Relay | 2.17 in |
| Overall Height - Relay | 3.9 in |
| Features | Manual Reset |
| Trip Class | 5E/10E/20E/30E |
| External reset possible | Yes |
| Release class | adjustable |
| Connection type | Screw connection |
| description of product type | 3RB3 |
| Power loss per pole, current-dependent [PlIp] | 1.53 W |
| Lowest value adjustable current range | 20 ampere |
| Number of auxiliary contacts as changer | 0 |
| Type of actuation | AC |
| Number of auxiliary contacts as shutter | 1 |
| Greatest value adjustable current range | 80 ampere |
| Number of auxiliary contacts as opener | 1 |
| Body Width | 2.17 in |
| Body Height | 7.66 in |
| Frame Size | S2 |
| Body Depth | 3.28 in |
| Auxiliary Contact Form | 1NO/1NC |
| Terminal Connection Type | Screw Terminals |
| Maximum Overload Relay Current Setting | 80 A |
| Maximum Operating Temperature | 140 deg F |
| Overload Protection Type | Electronic |
| Relay Style | IEC |
| Reset Type | Manual, Auto |
| Mounting Style | Direct To Contactor |
| Overall Height | 7.66 in |
| Maximum Voltage Rating | 690 V AC |
| Compatible with Series | SIRIUS |
| Minimum Operating Temperature | -13 deg F |
| Includes Mounting Hardware | Not Applicable |
| Number of Required Thermals | Not Applicable |
| Phase | Three |
| IP Rating | IP20 |
| Minimum Overload Relay Current Setting | 20 A |
| Includes Thermal Units | Not Applicable |
| Package Quantity | 1 |
