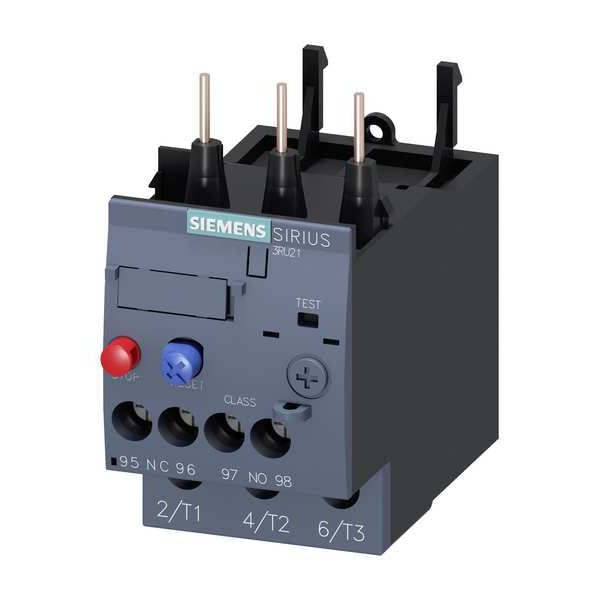

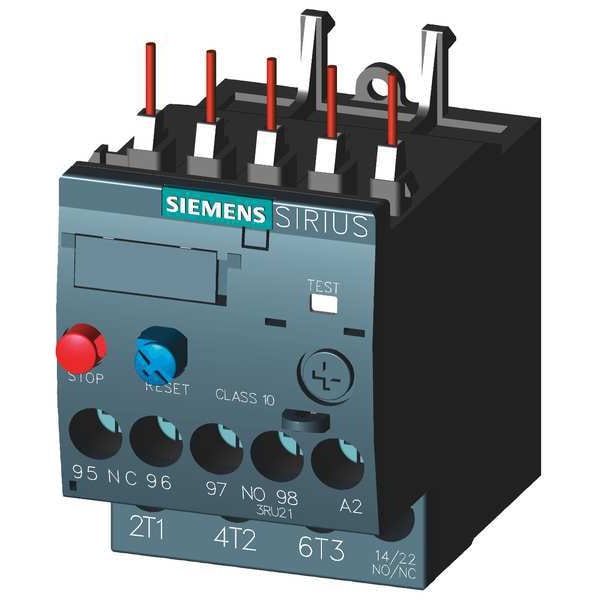

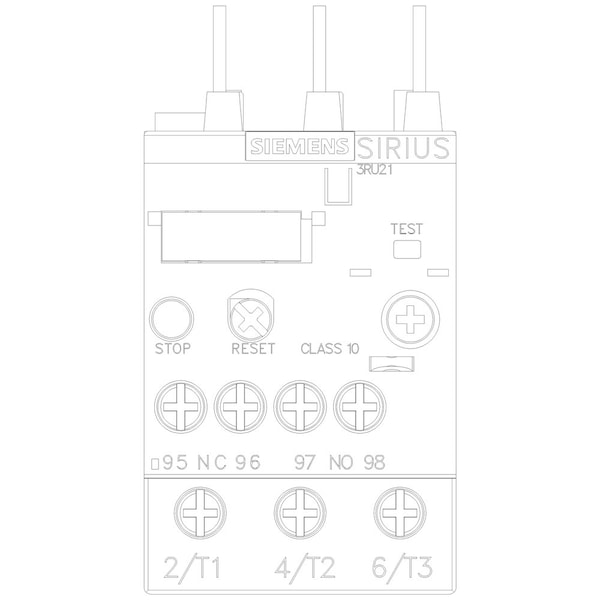

Relevador de sobrecarga, 20 a 25A, 3P, Clase 10, 690V
| Item - Relay | IEC Style Overload Relay |
|---|---|
| Item | Overload Relay |
| Current Range | 20 to 25 A |
| Use With - Contactors and Starters | Mfr. Series 3RT202 Contactors |
| Overload Relay Current Range | 20 to 25 A |
| NEMA Size | Not Applicable |
| Width | 1.77 in |
| Trip Class - Overload | 10 |
| Number of Poles | 3 |
| Frame / Series / Class / Code | S0 |
| Reset Type - Relay | Manual, Auto |
| Height | 3.35 in |
| Sensing Method | Thermal |
| Depth | 3.35 in |
| Standards | REACH Art 33 Duty to Inform According to the Current List of Candidates Lead CAS-No. 7439-92-1 Greater Than 0, 1 % (w/w), RoHS 07/01/2006, WEEE (2012/19/EU) Take-Back Obligation |
| Trip Class | 10 |
| Separate Mounting | Yes, Additional Items Needed |
| Features | Manual and Auto Reset |
| Body Height - Relay | 3.35 in |
| For Use With | 3RT202 Contactors |
| Overall Height - Relay | 3.35 in |
| Body Width - Relay | 1.77 in |
| Body Depth - Relay | 3.35 in |
| Mounting | Contactor mounting |
| Starter Type | IEC |
| Type | thermal overload relay |
| Operating Temperature | -40°C to 70°C |
| Insulation | IP20 |
| Full Load Current Range | 25 A / 25 A |
| Trip type | CLASS 10 |
| Contact configuration | 1 / 0 / 1 |
| Contact Rating | B600 / R300 |
| Environmental Conditions | -55 |
| Size | 0.045 m / 0.085 m / 0.085 m |
| Body Depth | 3.35 in |
| Body Width | 1.77 in |
| IP Rating | IP20 |
| Overall Height | 3.35 in |
| Includes Thermal Units | Yes |
| Minimum Operating Temperature | -40 deg F |
| Maximum Overload Relay Current Setting | 25 A |
| Reset Type | Manual, Auto |
| Body Height | 3.35 in |
| Maximum Operating Temperature | 158 deg F |
| Compatible with Series | SIRIUS |
| Auxiliary Contact Form | 1NO/1NC |
| Maximum Voltage Rating | 690 V AC |
| Mounting Style | Direct To Contactor |
| Frame Size | S0 |
| Overload Protection Type | Thermal |
| Relay Style | IEC |
| Number of Required Thermals | 3 |
| Phase | Three |
| Includes Mounting Hardware | Not Applicable |
| Minimum Overload Relay Current Setting | 20 A |
| Terminal Connection Type | Screw Terminals |
| Package Quantity | 1 |
