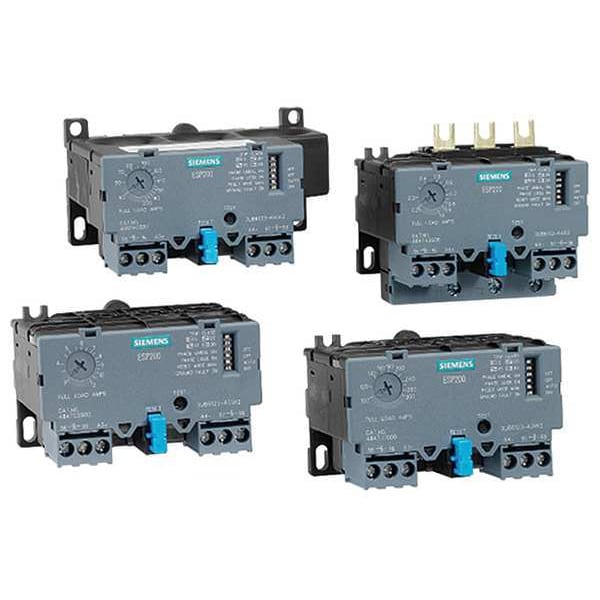

Sobrecarga Dependiente, 0.25 a 1A, Clase 5/20/20/30.
| Item | Overload Relay |
|---|---|
| Item - Relay | IEC Style Overload Relay |
| Current Range | 0.25 to 1 A |
| Use With - Contactors and Starters | Mfr. Class 14 Starters |
| Overload Relay Current Range | 0.25 to 1 A |
| NEMA Size | Not Applicable |
| Width | 3.15 in |
| Trip Class - Overload | 10, 20, 30, 5 |
| Number of Poles | 3 |
| Frame / Series / Class / Code | Frame A |
| Reset Type - Relay | Manual, Auto |
| Sensing Method | Electronic |
| Height | 2.6 in |
| Depth | 2.12 in |
| Features | Manual and Auto Reset |
| Separate Mounting | Yes |
| For Use With | Class 14 Starters |
| Kit Required for Retrofit Mtg. | No |
| Body Depth - Relay | 2.12 in |
| Body Width - Relay | 3.15 in |
| Standards | REACH Art 33 Duty to Inform According to the Current List of Candidates Lead CAS-No. 7439-92-1 Greater Than 0, 1 % (w/w), RoHS 07/01/2006 |
| Trip Class | 5/10/20/30 |
| Body Height - Relay | 2.6 in |
| Overall Height - Relay | 2.6 in |
| Starter Type | IEC |
| Includes Thermal Units | Not Applicable |
| Compatible with Series | Class 14 Starters, Class 48 Overload Relays |
| Minimum Overload Relay Current Setting | 0.25 A |
| Mounting Style | Direct To Contactor |
| Frame Size | A |
| Phase | Three |
| Includes Mounting Hardware | Not Applicable |
| Number of Required Thermals | Not Applicable |
| Maximum Voltage Rating | 690 V AC |
| Body Width | 3.15 in |
| Terminal Connection Type | Screw Terminals |
| Overall Height | 2.6 in |
| Reset Type | Manual, Auto |
| Body Height | 2.6 in |
| Body Depth | 2.12 in |
| Maximum Overload Relay Current Setting | 1 A |
| Overload Protection Type | Electronic |
| Relay Style | IEC |
| Auxiliary Contact Form | 1NO/1NC |
| Package Quantity | 1 |
