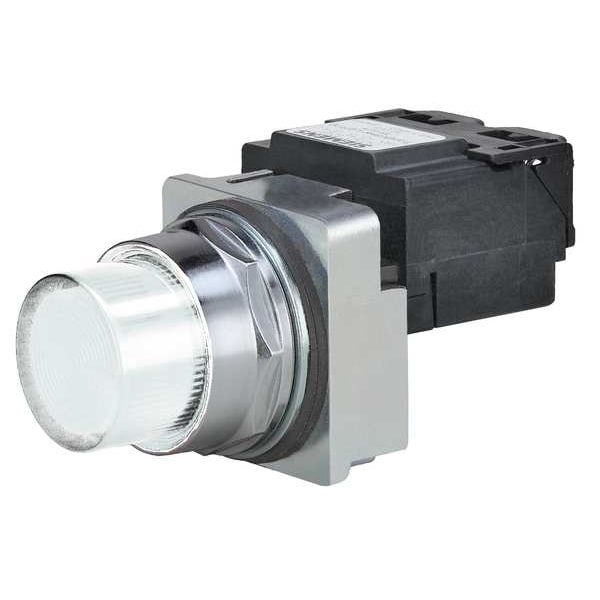

Luz piloto completa, incandescente, 480V, 30mm, blanco.
| Item | Pilot Light |
|---|---|
| Voltage | 480V AC |
| Color | White |
| Lamp Type | Incandescent |
| Shape | Round |
| Terminal Connection | Screw Terminal |
| Lens Material | Plastic |
| Lens Type | Concentric Rings |
| Size | 30 mm |
| Lamp Module Type | Transformer |
| Basic Material | Metal |
| Body Material | Metal |
| Lamp Voltage | 6V AC/DC |
| Includes | Lamp Module |
| NEMA Rating | 1, 12, 13, 3, 3R, 4, 4X |
| Replacement Lamps | 4VCW2 |
| Standards | CSA, UL Listed |
| IP Rating | IP66, IP20 |
| Legend | Not Applicable |
| Voltage Rating - Maximum | 480 V AC |
| Includes Lamp Module | Lamp Module Included |
| Series | Class 52 |
| Lens Color | White |
| NEMA Enclosure Rating | 13, 4, 12, 3, 4X, 3R, 1 |
| Lamp Voltage - Maximum | 480 V AC |
| Overall Depth | 3.49 in |
| Includes Lens | Lens Included |
| Body Finish | Chrome Plated |
| Panel Cutout Diameter | 30 mm |
| Hazardous Location Specification | Not Applicable |
| Lamp Color | White |
| Overall Height | 1.7 in |
| Resistance Properties | Surge Voltage Resistant, Vibration Resistant |
| Includes Push-To-Test | No Push-To-Test Included |
| Overall Width | 1.7 in |
| Package Quantity | 1 |
