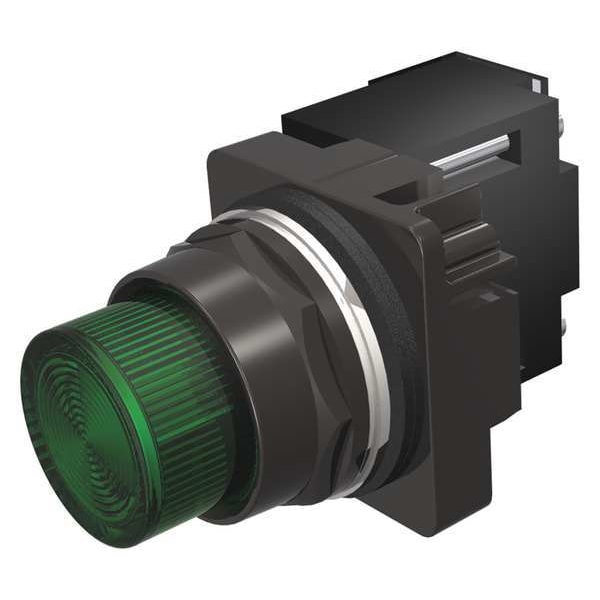

Indicador luminoso, transformador, verde, 120VCA, 30mm.
| Item | Pilot Light |
|---|---|
| Voltage | 120V AC |
| Color | Green |
| Lamp Type | Incandescent |
| Shape | Round |
| Terminal Connection | Screw Terminal |
| Lens Material | Plastic |
| Size | 30 mm |
| Lens Type | Concentric Rings |
| Lamp Module Type | Transformer |
| Basic Material | Epoxy |
| Includes | Lamp, Lamp Module, Operator Head |
| Standards | CSA, UL Listed |
| NEMA Rating | 1, 12, 13, 3, 3R, 4, 4X |
| Body Material | Metal |
| IP Rating | IP66, IP20 |
| Replacement Lamps | 4VCW2 |
| Lamp Voltage | 6V AC/DC |
| Legend | Not Applicable |
| Lens Color | Amber |
| Overall Width | 1.7 in |
| Body Color | Black |
| Hazardous Location Specification | Not Applicable |
| Resistance Properties | Corrosion Resistant |
| Includes Push-To-Test | No Push-To-Test Included |
| Lamp Color | Green |
| Lamp Voltage - Maximum | 240 V AC |
| Overall Depth | 3.49 in |
| NEMA Enclosure Rating | 13, 4, 12, 3, 4X, 3R, 1 |
| Series | 52 |
| Voltage Rating - Maximum | 120 V |
| Includes Lamp Module | Lamp Module Included |
| Body Finish | Epoxy Coated |
| Overall Height | 1.7 in |
| Includes Lens | Lens Included |
| Panel Cutout Diameter | 30 mm |
| Package Quantity | 1 |
