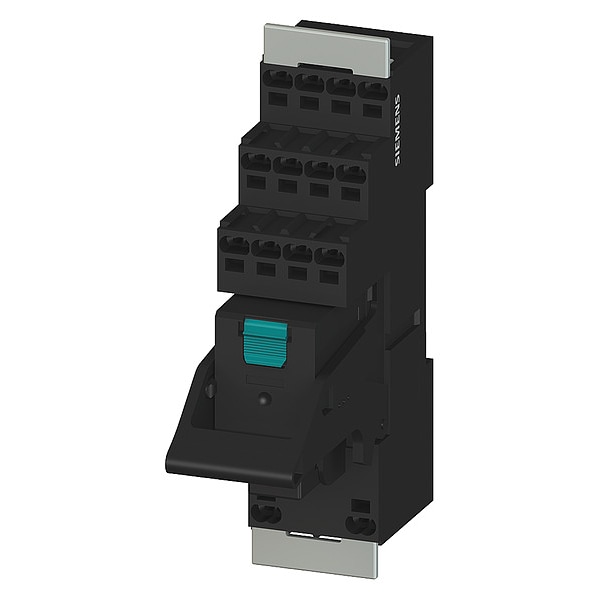

Relevador Plug-In, 115V CA, 6 A, Pines
| Item | Plug-In Relay |
|---|---|
| AC Contact Rating - Relay | 4A @ 115V |
| Contact Form - Relay | 4 CO; 0 NC; 0 NO |
| Mounting - Relay | Plug In |
| Power Consumption - Relay | 0.75 W |
| Contact Material | Silver Nickel |
| Body Height - Relay | 3.11 in |
| Body Width - Relay | 1.1 in |
| Body Depth - Relay | 3.85 in |
| Overall Height - Relay | 3.11 in |
| Features | Polarized; Mono Stable Drive; Simple Contact; With LED Indication |
| Standards | EAC, VDE |
| Safety Rating | ed |
| Input Voltage | 115 V AC |
| Electrical Connection | Spring-Type Terminal |
| HP @ 120V | Not Rated |
| HP @ 240V | Not Rated |
| Item - Relay | Plug In Relay |
| Status Indicator | LED Indicator |
| Motor Rated | Not Rated - Not Rated |
| Weight | 3.84 oz |
| Mounting Style | Plug-In |
| Series | LZS Series |
| Overall Depth | 3.11 in |
| Body Depth | 3.11 in |
| Power Consumption | 0.75 W |
| Coil Voltage | 115 V AC |
| Maximum Operating Temperature | 158 deg F |
| Horsepower @ 120V AC | Not Rated |
| Current Rating | 6 A |
| Minimum Operating Temperature | -40 deg F |
| Mechanical Operating Durability | 20,000,000 |
| Electrical Operating Durability | 250,000 |
| Contact Rating (AC) | 4 A @ 120V |
| For Use With | Sockets |
| IP Rating | IP20 |
| Body Width | 1.05 in |
| Body Height | 3.05 in |
| Horsepower @ 240V AC | Not Rated |
| Package Quantity | 1 |
