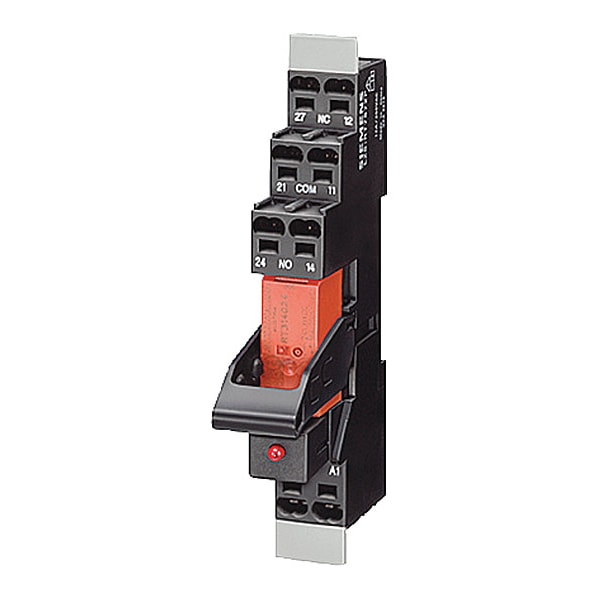

Relé con conexión, 115V AC en la bobina, 1 contacto normalmente cerrado y 1 contacto normalmente abierto.
| Item | Plug-In Relay |
|---|---|
| Coil Volts | 115V AC |
| AC Contact Rating - Relay | 16A @ 115V |
| Contact Form - Relay | 1 CO; 0 NC; 0 NO |
| Mounting - Relay | Plug In |
| Power Consumption - Relay | 1 W |
| Contact Material | Silver Nickel |
| Body Height - Relay | 2.8 in |
| Body Width - Relay | 0.61 in |
| Body Depth - Relay | 3.8 in |
| Overall Height - Relay | 2.8 in |
| Features | Polarized; Mono Stable Drive; Simple Contact; With LED Indication |
| Standards | EAC, VDE |
| Status Indicator | LED Indicator |
| HP @ 120V | Not Rated |
| Input Voltage | 115 V AC |
| Electrical Connection | Spring-Type Terminal |
| Safety Rating | ed |
| HP @ 240V | Not Rated |
| Item - Relay | Plug In Relay |
| Horsepower @ 120V AC | Not Rated |
| Weight | 2.11 oz |
| Body Height | 3.86 in |
| Body Depth | 2.8 in |
| Electrical Operating Durability | 70,000 |
| Mechanical Operating Durability | 10,000,000 |
| Minimum Operating Temperature | -40 deg F |
| Maximum Operating Temperature | 158 deg F |
| For Use With | Sockets |
| Contact Rating (AC) | 16 A @ 120V |
| IP Rating | IP20 |
| Mounting Style | Plug-In |
| Power Consumption | 1 W |
| Current Rating | 16 A |
| Coil Voltage | 115 V AC |
| Horsepower @ 240V AC | Not Rated |
| Series | LZS Series |
| Body Width | 0.61 in |
| Motor Rated | Not Rated - Not Rated |
| Overall Depth | 2.8 in |
| Package Quantity | 1 |
