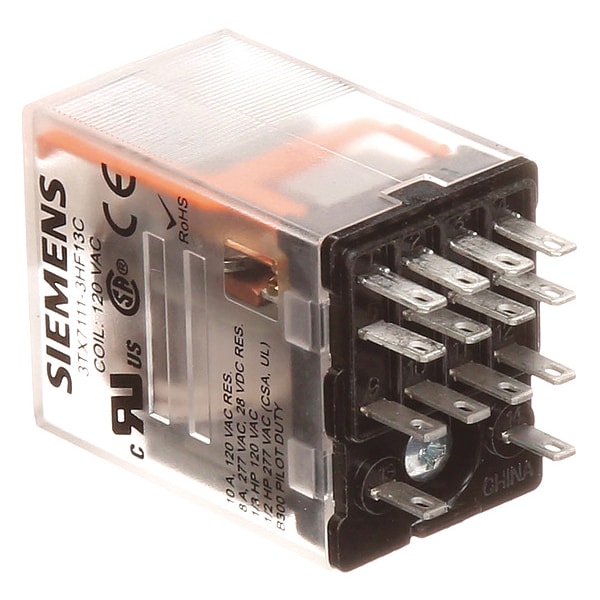

Relevador enchufable, 120V CA voltios de bobina, cuadrado, 14 pines, 4PDT.
| Item | Plug-In Relay |
|---|---|
| Coil Volts | 120V AC |
| AC Contact Rating - Relay | 6A @ 120V |
| Base Type - Plug In Relay | Square |
| Number of Pins - Relay | 14 |
| Contact Form - Relay | 4PDT |
| Mounting - Relay | Plug In |
| Power Consumption - Relay | 0.9 W, 1.2 VA |
| Contact Material | Silver Alloy |
| Body Height - Relay | 1.1 in |
| Body Width - Relay | 1.62 in |
| Body Depth - Relay | 0.83 in |
| Overall Height - Relay | 1.1 in |
| Features | Degree of Protection IP40, Shock Resistance 10gn |
| Standards | UL Listed |
| Contact Form | 4PDT |
| Status Indicator | None |
| Safety Rating | ed |
| Item - Relay | Plug In Relay |
| Input Voltage | 120 V AC |
| Push To Test | No |
| HP @ 240V | 1 hp |
| HP @ 120V | 1/3 hp |
| Power Consumption | 0.9 W, 1.2 VA |
| Mounting Style | Plug-In |
| Horsepower @ 120V AC | 1/3 hp |
| Base Shape | Square |
| Body Height | 1.1 in |
| Current Rating | 6 A |
| Resistance Properties | Shock-Resistant |
| IP Rating | IP40 |
| Coil Voltage | 120 V AC |
| Series | 3TX71 Series |
| Horsepower @ 240V AC | 1 HP |
| Number of Pins | 14 |
| Contact Rating (AC) | 6 A @ 120V |
| Motor Rated | Yes |
| Body Width | 1.62 in |
| Body Depth | 0.83 in |
| Weight | 1.06 oz |
| Push-To-Test Method | No Button |
| Overall Depth | 1.1 in |
| Package Quantity | 1 |
