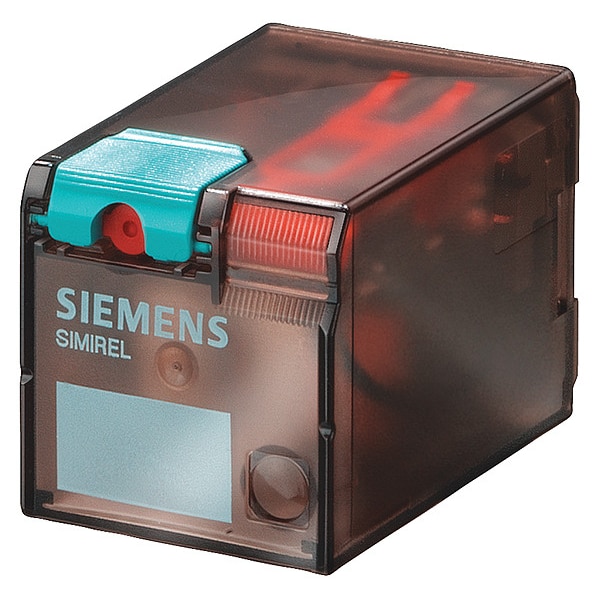

Relé con conexión a enchufe, 230V AC, 10 A, pines.
| Item | Plug-In Relay |
|---|---|
| AC Contact Rating - Relay | 10A @ 230V |
| Contact Form - Relay | 3 CO; 0 NC; 0 NO |
| Mounting - Relay | Plug In |
| Contact Material | Silver Nickel |
| Body Height - Relay | 1.43 in |
| Body Width - Relay | 1.43 in |
| Body Depth - Relay | 2.71 in |
| Overall Height - Relay | 1.43 in |
| Features | Polarized; Mono Stable Drive; Simple Contact |
| Standards | EAC, VDE |
| HP @ 240V | Not Rated |
| HP @ 120V | Not Rated |
| Input Voltage | 230 V AC |
| Status Indicator | None |
| Safety Rating | ed |
| Item - Relay | Plug In Relay |
| Mechanical Operating Durability | 20,000,000 |
| Coil Voltage | 230 V AC |
| Body Width | 1.44 in |
| Minimum Operating Temperature | -40 deg F |
| Overall Depth | 2.72 in |
| Contact Rating (AC) | 10 A @ 240V |
| Current Rating | 10 A |
| Series | LZX Series |
| Body Height | 1.44 in |
| Body Depth | 2.72 in |
| Mounting Style | Plug-In |
| Motor Rated | Not Rated - Not Rated |
| Horsepower @ 240V AC | Not Rated |
| Maximum Operating Temperature | 158 deg F |
| Weight | 3.04 oz |
| Horsepower @ 120V AC | Not Rated |
| Package Quantity | 1 |
