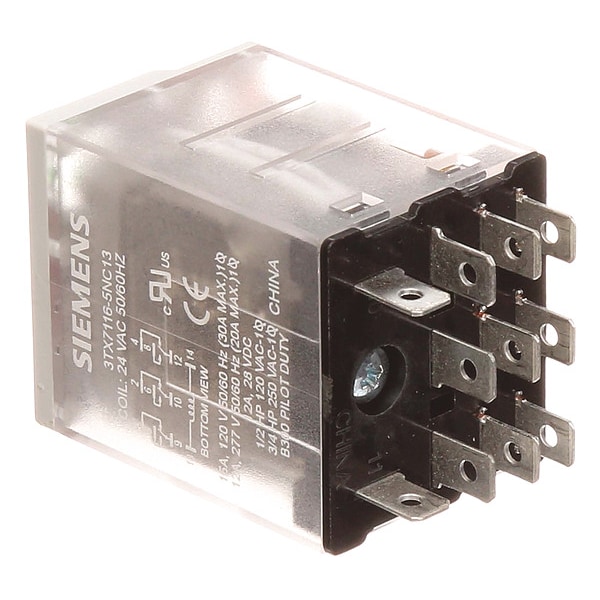

Relé con conexión, 24V CA bobina de voltaje, cuadrado, 11 pines, 3PDT
| Item | Plug-In Relay |
|---|---|
| Coil Volts | 24V AC |
| AC Contact Rating - Relay | 15A @ 24V |
| Base Type - Plug In Relay | Square |
| Number of Pins - Relay | 11 |
| Contact Form - Relay | 3PDT |
| Mounting - Relay | Plug In |
| Power Consumption - Relay | 1.4 W, 1.5 VA |
| Contact Material | Silver Alloy |
| Body Height - Relay | 1.08 in |
| Body Width - Relay | 1.54 in |
| Body Depth - Relay | 1.21 in |
| Overall Height - Relay | 1.54 in |
| Features | Degree of Protection IP40, Shock Resistance 10gn |
| Standards | UL Listed |
| Input Voltage | 24 V AC |
| Contact Form | 3PDT |
| Status Indicator | Mechanical Flag, LED Indicator |
| HP @ 120V | 1/2 hp |
| HP @ 240V | 3/4 hp |
| Base Shape | Square |
| Contact Rating (AC) | 15 A @ 24V |
| Coil Voltage | 24 V AC |
| Body Depth | 1.21 in |
| Motor Rated | Yes |
| Horsepower @ 240V AC | 0.75 HP |
| Current Rating | 15 A |
| Power Consumption | 1.4 W, 1.5 VA |
| Resistance Properties | Shock-Resistant |
| IP Rating | IP40 |
| Overall Depth | 1.54 in |
| Mounting Style | Plug-In |
| For Use With | Sockets |
| Body Height | 1.08 in |
| Weight | 2.46 oz |
| Number of Pins | 11 |
| Horsepower @ 120V AC | 1/2 hp |
| Compatible with Manufacturer Model Number | 3TX7144-4E8 |
| Series | 3TX71 Series |
| Body Width | 1.54 in |
| Item - Relay | Plug In Relay |
| Safety Rating | ed |
| Package Quantity | 1 |
