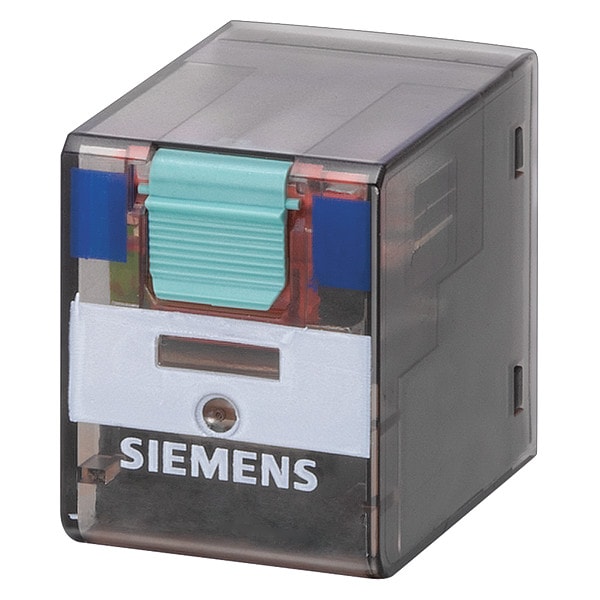

Relé de conexión, 24V DC, 6 A, pines
| Item | Plug-In Relay |
|---|---|
| DC Contact Rating - Relay | 6 A @ 24 V |
| Contact Form - Relay | 4 CO; 0 NC; 0 NO |
| Mounting - Relay | Plug In |
| Power Consumption - Relay | 0.75 W |
| Contact Material | Silver Nickel |
| Body Height - Relay | 1.1 in |
| Body Width - Relay | 0.88 in |
| Body Depth - Relay | 1.38 in |
| Overall Height - Relay | 1.1 in |
| Features | Polarized; Mono Stable Drive; Simple Contact |
| Standards | EAC, VDE |
| HP @ 240V | Not Rated |
| HP @ 120V | Not Rated |
| Input Voltage | 24 V DC |
| Status Indicator | None |
| Mounting Style | Plug-In |
| Horsepower @ 120V AC | Not Rated |
| Motor Rated | Not Rated - Not Rated |
| Series | LZX Series |
| Current Rating | 6 A |
| Body Depth | 1.38 in |
| Minimum Operating Temperature | -40 deg F |
| Mechanical Operating Durability | 30,000,000 |
| Compatible with Manufacturer Model Number | LZS |
| For Use With | Sockets |
| Body Width | 1.66 in |
| Power Consumption | 0.75 W |
| Horsepower @ 240V AC | Not Rated |
| Coil Voltage | 24 V DC |
| Push-To-Test Method | No Button |
| Weight | 1.06 oz |
| Body Height | 1.1 in |
| Electrical Operating Durability | 250,000 |
| Overall Depth | 1.38 in |
| Maximum Operating Temperature | 158 deg F |
| Contact Rating (DC) | 6 A @ 24 V |
| Safety Rating | ed |
| Push To Test | No |
| Item - Relay | Plug In Relay |
| Package Quantity | 1 |
