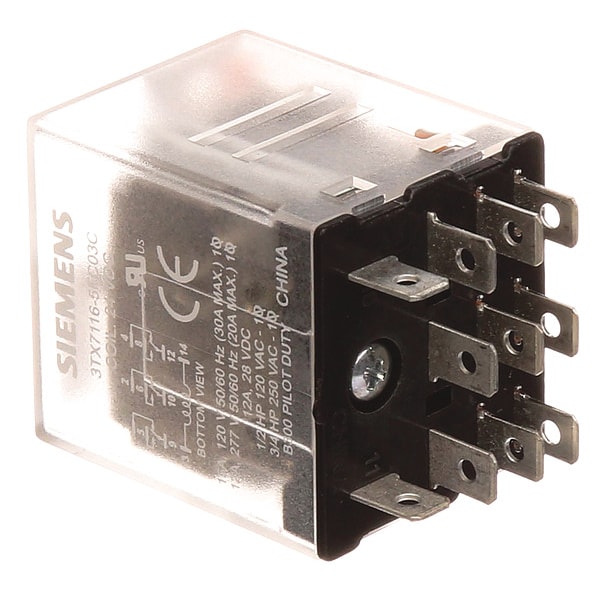

Relevador de conexión directa, 24V DC de voltaje en la bobina, cuadrado, 11 pines, 3PDT
| Item | Plug-In Relay |
|---|---|
| Coil Volts | 24V DC |
| AC Contact Rating - Relay | 10A @ 120/277V |
| DC Contact Rating - Relay | 10 A @ 24 V |
| Base Type - Plug In Relay | Square |
| Number of Pins - Relay | 11 |
| Contact Form - Relay | 3PDT |
| Mounting - Relay | Plug In |
| Power Consumption - Relay | 0.9 W, 1.2 VA |
| Contact Material | Silver Alloy |
| Body Height - Relay | 1.4 in |
| Body Width - Relay | 1.97 in |
| Body Depth - Relay | 1.37 in |
| Overall Height - Relay | 2.29 in |
| Features | Degree of Protection IP40, Shock Resistance 10gn |
| Standards | UL Listed |
| Input Voltage | 24 V DC |
| HP @ 120V | 1/3 hp |
| Item - Relay | Plug In Relay |
| Safety Rating | ed |
| Push To Test | No |
| Contact Form | 3PDT |
| Status Indicator | None |
| HP @ 240V | 1/2 hp |
| Number of Pins | 11 |
| Contact Rating (AC) | 10 A @ 120/277V |
| Series | 3TX71 Series |
| Body Depth | 1.37 in |
| IP Rating | IP40 |
| Current Rating | 15 A |
| Power Consumption | 0.9 W, 1.2 VA |
| Overall Depth | 2.29 in |
| Motor Rated | Yes |
| Push-To-Test Method | No Button |
| Body Width | 1.97 in |
| Horsepower @ 240V AC | 0.5 HP |
| Weight | 0.35 oz |
| Contact Rating (DC) | 10 A @ 24 V |
| Coil Voltage | 24 V DC |
| Mounting Style | Plug-In |
| Resistance Properties | Shock-Resistant |
| Body Height | 1.4 in |
| Base Shape | Square |
| Horsepower @ 120V AC | 1/3 hp |
| Package Quantity | 1 |
