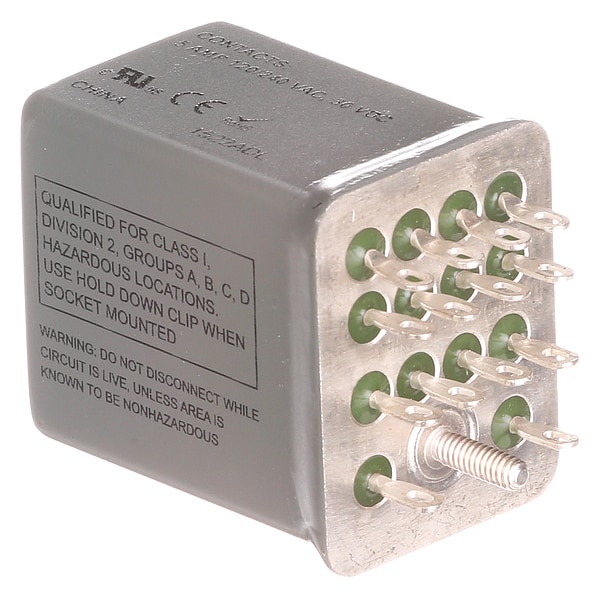

Relevador con conexión plug-in, 24V DC de voltaje de bobina, cuadrado, 14 pines, 4PDT.
| Item | Plug-In Relay |
|---|---|
| Coil Volts | 24V DC |
| DC Contact Rating - Relay | 5 A @ 24 V |
| Base Type - Plug In Relay | Square |
| Number of Pins - Relay | 14 |
| Contact Form - Relay | 4PDT |
| Mounting - Relay | Plug In |
| Power Consumption - Relay | 0.9 W, 1.2 VA |
| Contact Material | Silver |
| Body Width - Relay | 1.28 in |
| Body Depth - Relay | 0.19 in |
| Overall Height - Relay | 1.16 in |
| Standards | UL Listed |
| Input Voltage | 24 V DC |
| HP @ 240V | 1/2 hp |
| HP @ 120V | 1/3 hp |
| Status Indicator | None |
| Contact Form | 4PDT |
| Horsepower @ 120V AC | 1/3 hp |
| Contact Rating (DC) | 5 A @ 24 V |
| Overall Depth | 1.16 in |
| For Use With | Sockets |
| Horsepower @ 240V AC | 0.5 HP |
| Number of Pins | 14 |
| Body Depth | 0.19 in |
| Series | 3TX71 Series |
| Mounting Style | Plug-In |
| Sealing | Hermetically Sealed |
| NEC Hazardous Location Classification | Class I, Division 2 |
| Body Width | 1.28 in |
| Weight | 1.76 oz |
| Motor Rated | Yes |
| Power Consumption | 0.9 W, 1.2 VA |
| Current Rating | 5 A |
| Base Shape | Square |
| Coil Voltage | 24 V DC |
| Compatible with Manufacturer Model Number | 3TX7144-1E5, 3TX7144-4E5 |
| Safety Rating | Class I, Div. 2 |
| Item - Relay | Plug In Relay |
| Package Quantity | 1 |
