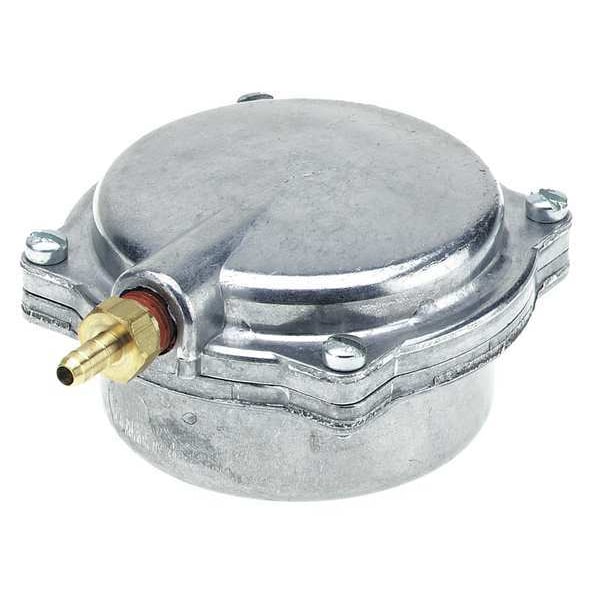

Pneumatic Valve Actuator, 10 to 15 Spring
| Item | Pneumatic Valve Actuator |
|---|---|
| Operating PSI Range | 10 to 15, 3 to 8, 8 to 13 |
| Max. Air Pressure | 35 psi |
| Stroke | 7/32 in |
| Nominal Spring Range | 8 to 13 psi |
| Mounting Type | Direct Coupled |
| Net Force Exerted @ 0 PSI | 35 lb |
| Width | 3-3/8 in |
| Provides | Pneumatic Proportional Control |
| Length | 1-3/4 in |
| Height | 1-3/4 in |
| For Use With | 1/2 in to 1 in Powermite MT Series Terminal Unit Valves |
| Application | Terminal Unit Valves |
| Includes Mounting Kit | Valve Mounting Kit Included |
| Manufacturer Series | MT |
| Housing Material | Aluminum |
| Overall Width | 3-3/8 in |
| Operating Temperature - Maximum | 120 deg F |
| Installation Orientation | Horizontal, Vertical |
| Diaphragm Material | Silicone |
| Compatible Valve Size | 2 in |
| Control Pressure - Maximum | 13 psi |
| Spring Range Maximum | 13 psi |
| Air Connection Size | 1/8 in |
| Air Connection Type | NPT |
| Operating Temperature - Minimum | 35 deg F |
| Overall Length | 4 in |
| Spring Range Minimum | 8 psi |
| Mounting Style | Direct Coupled |
| Overall Depth | 1-3/4 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
