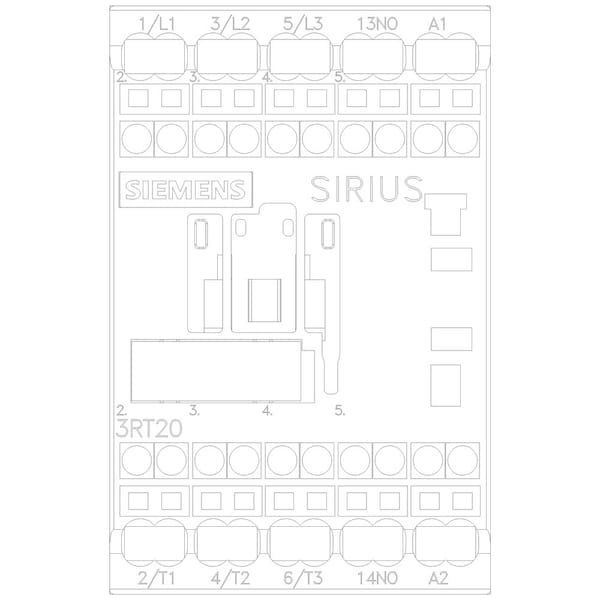

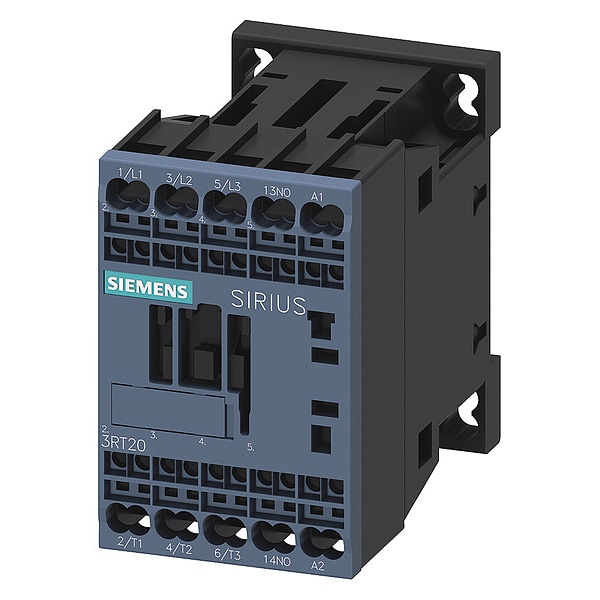

Contactador de corriente, 3 polos, 230V AC, 16 A.
| Item | IEC Power Contactor |
|---|---|
| Full Load Amps-Inductive | 16 A |
| Full Load Amps-Resistive | 22 A |
| Number of Poles | 3 |
| Coil Volts | 230 V AC |
| HP @ 1 Phase - 120V | 1 hp |
| HP @ 1 Phase - 240V | 2 hp |
| HP @ 3 Phase - 208V | 3 hp |
| HP @ 3 Phase - 240V | 5 hp |
| HP @ 3 Phase - 480V | 10 hp |
| HP @ 3 Phase - 575V | 10 hp |
| Aux. Contact Configuration | 1NO |
| Hz | 50/60 |
| Depth | 73 mm |
| Frame / Series / Class / Code | S00 |
| Standards | REACH Art 33, WEEE (2012/19/EU) |
| Height | 70 mm |
| Width | 45 mm |
| Electrical Connection | Spring Pulley |
| Watts Loss | 1W (Current Dependent); 5.7W (Current Independent) |
| Series | SIRIUS 3RT20 |
| IP Rating | IP20 |
| Max. Operating Watts | 8 kW (at 400V, AC-3), 13 kW (at 400V, AC-1) |
| Full Load Current - Inductive | 16 A |
| Maximum Voltage Rating | 690 V AC |
| Overall Depth | 2.92 in |
| Overall Width | 1.97 in |
| Terminal Connection Type | Spring Loaded Terminals |
| NEMA Enclosure Rating | No Enclosure |
| Includes Auxiliary Contacts | Yes |
| Mounting Style | DIN Rail, Surface |
| Auxiliary Contact Form | 1NO |
| Number of Normally Open Main Contacts | 3 |
| Frequency | 50/60 Hz |
| Maximum Operating Temperature | 140 deg F |
| Mounting Postion | Vertical |
| Number of Auxillary Contacts | 1 |
| Contactor Style | IEC |
| Horsepower @ Three Phase - 480V AC | 10 HP |
| Response Time | 10 to 17 msec (AC Operation Closing Delay Operation Opening Delay Operating Times for 1.0 x Us1), 15 to 17.5 msec (DC Operation Opening Delay Operating Times For 0.8 ... 1.1 X Us1), 16 to 17.5 msec (DC Operation Opening Delay Operating Times for 1.0 x Us), 4 to 16 msec (AC Operation Opening Delay Operating Times for 0.8 ... 1.1 X Us1), 4 to 16 msec (AC Operation Opening Delay Operating Times for 1.0 x Us), 50 to 170 msec (DC Operation Closing Delay Operating Times for 0.8 ... 1.1 X Us1), 55 to 80 msec (DC Operation Closing Delay Operating Times for 1.0 x Us), 8 to 40 msec (AC Operation Closing Delay) |
| Frame Size | S00 |
| Mechanical Operating Durability | 30,000,000 |
| Horsepower @ Single Phase - 120V AC | 1 HP |
| Horsepower @ Three Phase - 600V AC | 10 HP |
| Coil Voltage | 230V AC |
| Mounting Hole Diameter | 0.2 in |
| Full Load Current - Resistive | 22 A |
| Embedded Surge Suppressor | No |
| NEMA Size | Not Applicable |
| Overall Height | 3.08 in |
| Phase | Three |
| Mounting Hole Distance - Height | 1.97 in |
| Reversing Capability | Non-Reversing |
| Mounting Hole Distance - Width | 1.38 in |
| Horsepower @ Three Phase - 208V AC | 3 HP |
| Horsepower @ Three Phase - 240V AC | 5 HP |
| Horsepower @ Single Phase - 240V AC | 2 HP |
| Minimum Operating Temperature | -13 deg F |
| Package Quantity | 1 |
