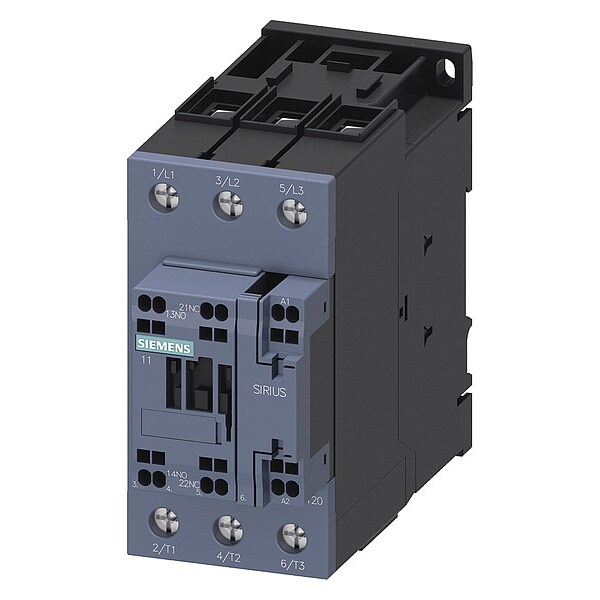

Contacto de potencia, 3 polos, 24V DC, 65 A.
| Item | IEC Power Contactor |
|---|---|
| Full Load Amps-Inductive | 65 A |
| Full Load Amps-Resistive | 80 A |
| Number of Poles | 3 |
| Coil Volts | 24 V DC |
| HP @ 1 Phase - 120V | 5 hp |
| HP @ 1 Phase - 240V | 10 hp |
| HP @ 3 Phase - 208V | 20 hp |
| HP @ 3 Phase - 240V | 20 hp |
| HP @ 3 Phase - 480V | 50 hp |
| HP @ 3 Phase - 575V | 50 hp |
| Aux. Contact Configuration | 1NO, 1NC |
| Depth | 130 mm |
| Standards | REACH Art 33, WEEE (2012/19/EU) |
| Width | 55 mm |
| Frame / Series / Class / Code | S2 |
| Height | 114 mm |
| Special Features | Varistor Spring |
| Watts Loss | 3.8W (Current Dependent); 1W (Current Independent) |
| Max. Operating Watts | 30 kW (at 400V, AC-3), 53 kW (at 400V, AC-1) |
| Electrical Connection | Screws |
| IP Rating | IP20 |
| Series | SIRIUS 3RT20 |
| Horsepower @ Single Phase - 240V AC | 10 HP |
| Includes Auxiliary Contacts | Yes |
| Mounting Hole Distance - Height | 3.84 in |
| Auxiliary Contact Form | 1NO/1NC |
| Horsepower @ Three Phase - 208V AC | 20 HP |
| Full Load Current - Resistive | 80 A |
| Mounting Hole Diameter | 0.2 in |
| Maximum Voltage Rating | 690 V AC |
| Mounting Hole Distance - Width | 1.77 in |
| Frame Size | S2 |
| NEMA Enclosure Rating | No Enclosure |
| Horsepower @ Three Phase - 480V AC | 50 HP |
| Overall Width | 2.56 in |
| Mounting Postion | Vertical |
| Horsepower @ Three Phase - 600V AC | 50 HP |
| Minimum Operating Temperature | -13 deg F |
| Overall Height | 5.67 in |
| Full Load Current - Inductive | 65 A |
| Mechanical Operating Durability | 10,000,000 |
| Terminal Connection Type | Spring Loaded Terminals |
| Number of Normally Open Main Contacts | 3 |
| Number of Auxillary Contacts | 2 |
| Reversing Capability | Non-Reversing |
| NEMA Size | Not Applicable |
| Coil Voltage | 24V DC |
| Overall Depth | 4.84 in |
| Contactor Style | IEC |
| Horsepower @ Single Phase - 120V AC | 5 HP |
| Maximum Operating Temperature | 140 deg F |
| Mounting Style | DIN Rail, Surface |
| Horsepower @ Three Phase - 240V AC | 20 HP |
| Embedded Surge Suppressor | Yes |
| Package Quantity | 1 |
