El cable de arrastre PROFIBUS FC de Siemens es ideal para la conexión de dispositivos PROFIBUS, ofreciendo una transmisión de datos confiable y de alta velocidad. Fabricado con materiales de calidad, garantiza un rendimiento óptimo en entornos industriales exigentes.
| Item | Trailing Cable |
|---|---|
| Standards | RoHS Compliant |
| Bend Radius | 60 mm |
| Jacket Material - Wire and Cable | Thermoplastic Polyurethane |
| Shielded | Yes |
| Jacket Material | PU |
| Shielding Material | Aluminum-Clad Foil |
| Insulation Material | PE |
| Application | Communications |
| Jacket Color | Teal |
| Solid / Stranded | Stranded |
| Outer diameter of the cable | 8 millimetre |
| Flame resistant according to standard | According to IEC 60332-1-2 |
| Number of wires | 2 |
| Max. perm. surface temperature with stationary lines | 60 degree_Celsius |
| Min. perm. surface temperature with stationary lines | -40 degree_Celsius |
| Material of the mantle | PUR |
| description of product type | Cable |
| RoHS attention of conformity | 1 |
| Construction of the cabled element | Two wire |
| min. ambient temperature during operating phase | -40 degree_Celsius |
| Marking of conductors | Color |
| Design of shield over cabling | Film + fabric |
| Min. perm. surface temperature with open (not stationary) lines | 60 degree_Celsius |
| Color of coat | petrol |
| max. ambient temperature during operating phase | 60 degree_Celsius |
| Diameter of conductor | 0.67 millimetre |
| max. traction stress | 100 N |
| Class of conductor | Kl.5 = fine-wire |
| Material of the wire insulation | PE |
| Max. perm. surface temperature with open (not stationary) lines | -40 degree_Celsius |
| USP information | FastConnect,PB FC Trailing Cable,Trailing Cable,cable cross |

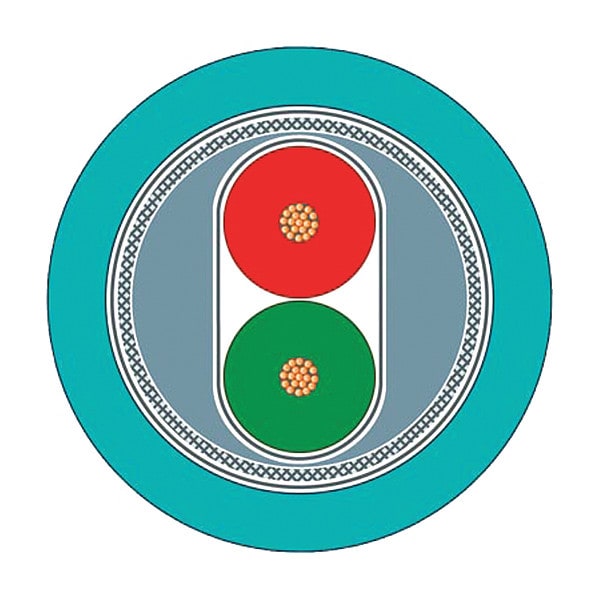

| design of shield | Overlapped aluminum-clad foil, sheathed in a braided screen |
| Maximum Impedance | 270 ohms |
| Maximum Voltage Rating | 80 V |
| Outside Diameter | 0.3 in |
| Minimum Operating Temperature | -40 deg F |
| Conductor Gauge | 20 AWG |
| Solid/Stranded | Stranded |
| Maximum Operating Temperature | 140 deg F |
| Product Type | Communication Cable |
| Maximum Capacitance | 28 pf/m |
| Resistance Properties | Flame/Fire Resistant |
| Package Quantity | 1 |
