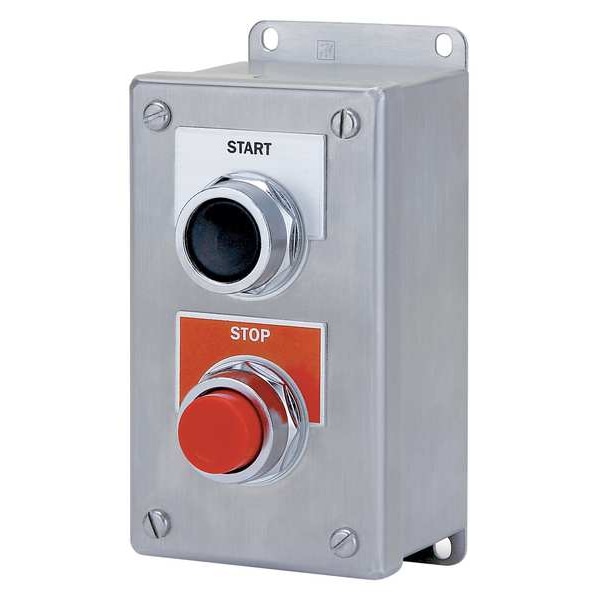

Estación de control de botón de empuje, inicio/paro, 30mm.
| Item | Control Station |
|---|---|
| Contact Form | 2NO/2NC |
| Legend | Stop, Start |
| Type of Operator | Flush Button/Raised Button |
| Number of Pilot Lights | 0 |
| Number of Operators | 2 |
| NEMA Rating | 4x |
| Hub Style | Not Applicable |
| Series | Class 52 |
| Size | 30 mm |
| Standards | CSA LR6535, UL E22655 |
| Contact Rating | 5A @ 600V AC |
| Action | Momentary |
| Mechanical Interlock | No |
| NEMA Contact Rating Designation | B600 |
| Height | 4.12 in |
| Operator Color | Red, Black |
| Enclosure Color | Gray |
| Enclosure Material | Stainless Steel |
| IP Rating | IP66 |
| Depth | 6-3/4 in |
| Width | 3.47 in |
| Mounting | Wall |
| Number of Speeds | Not Applicable |
| Product Type | Control Station |
| NEMA Enclosure Rating | 4, 4X |
| Selector Switch Number of Positions | Not Applicable |
| Hub Size - Maximum | 1-3/16 in |
| Operator Configuration | Push Buttons |
| Hazardous Location Specification | Class I, Div 2, Group A, B, C, D |
| AC Contact Rating | 5 A @ 600 V |
| Operating Temperature - Maximum | 158 deg F |
| Maintained Action Release | Not Applicable |
| Includes Mechanical Interlock | No Mechanical Interlock Included. |
| Resistance Properties | Corrosion Resistant, Oil and Grease Resistant, Waterproof |
| Pilot Light Color | Not Applicable |
| Overall Height | 6-3/4 in |
| Mounting Orientation | Not Applicable |
| DC Contact Rating | Not Rated |
| Overall Width | 3.47 in |
| Panel Cutout Diameter | 30 mm |
| Overall Depth | 2-3/4 in |
| Operating Temperature - Minimum | 31 deg F |
| Package Quantity | 1 |
