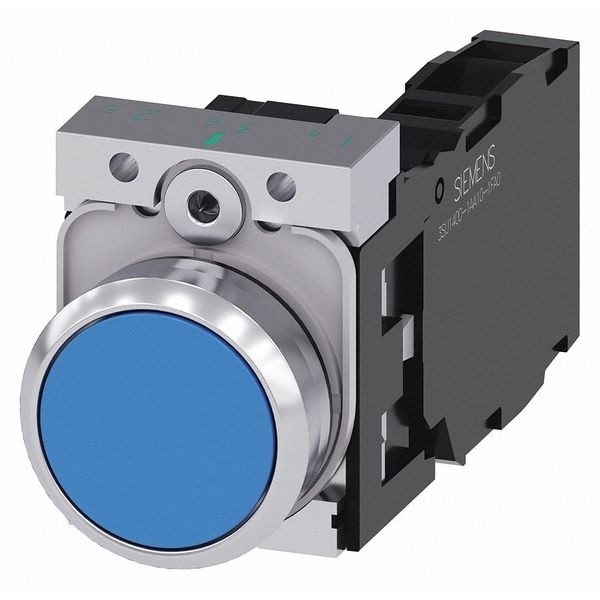

Botón de empuje, 22mm, azul, marco de metal.
| Size | 22 mm |
|---|---|
| Item | Flush Push Button Operator |
| Legend | Not Applicable |
| Features | Possible to Select 1 to 4 Positions with ID Keys, Four ID Keys with Different Codes |
| Color | Blue |
| Material | metal |
| IP Rating | IP69K, IP67, IP66, IP69 |
| Number of Operators | 1 |
| Contact Form | 1NO/1NC |
| Type of Operator | Flush Button |
| Basic Material | Zinc Alloy |
| NEMA Contact Rating Designation | A600, R300 |
| Terminal Connection | Screw |
| NEMA Rating | 1, 12, 2, 3, 3R, 4, 4X |
| Standards | REACH, WEEE (2012/19/EU) |
| Bezel | Metal |
| Action | Momentary |
| Head Material | Plastic |
| Contact Rating | 10A @ 600V AC, 1A @ 600V DC |
| Product Type | Push Button Operators |
| Lamp Type | Not Applicable |
| Application | Complete unit |
| Bezel Material | Metal |
| Lamp Module Type | Not Applicable |
| Type | Pushbutton |
| Special Features | Yes |
| Insulation | IP66, IP67, IP69(IP69K) |
| Mounting | front plate mounting |
| Number of Poles | 1 |
| Actuator | Button, flat |
| Contact configuration | 36526 |
| Operating Temperature | -25°C to 70°C |
| Connection | screw-type terminals |
| Environmental Conditions | -25 |
| Voltage rating | 5 |
| Operating cycles | 10,000,000 |
| Operator Voltage Rating - Maximum | 500 V |
| Overall Width | 5.7 in |
| Operator Material | Zinc Alloy |
| Mechanical Operating Durability | 1.00 x 10^7 |
| Legend Background Color | Not Applicable |
| NEMA Enclosure Rating | 4X, 12, 4, 3, 3R, 1, 2 |
| Lamp Voltage - Maximum | Not Applicable |
| Maintained Action Release | Not Applicable |
| Operator Illumination | Non-Illuminated |
| Operating Temperature - Minimum | -13 deg F |
| Manufacturer Warranty Length | 1 yr |
| Number of Indicator Lights | 0 |
| Hazardous Location Specification | Not Applicable |
| Overall Height | 1-1/4 in |
| Series | 3SU |
| Legend Color | Not Applicable |
| AC Contact Rating | 10 A @ 600 V |
| Overall Depth | 7.8 in |
| Panel Cutout Diameter | 22 mm |
| Mushroom Head Diameter | Not Applicable |
| Head Color | Blue |
| Operating Temperature - Maximum | 158 deg F |
| Push Button Style | Flush |
| DC Contact Rating | 1 A @ 600 V |
| Package Quantity | 1 |
