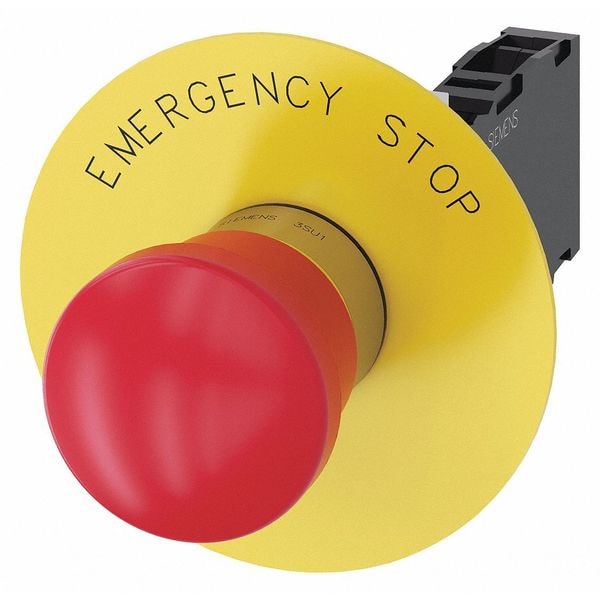

Botón de empuje de 22mm, rojo, con bisel de metal.
| Size | 22 mm |
|---|---|
| Item | Emergency Stop Push Button |
| Legend | Emergency Stop |
| Features | Possible to Select 1 to 4 Positions with ID Keys, Four ID Keys with Different Codes |
| Color | Red |
| Material | metal |
| Number of Operators | 1 |
| Terminal Connection | Screw |
| IP Rating | IP69K, IP67 |
| NEMA Contact Rating Designation | A600, R300 |
| Basic Material | Zinc Alloy |
| Standards | REACH, WEEE (2012/19/EU) |
| Bezel | Metal |
| Contact Rating | 10A @ 600V AC, 1A @ 600V DC |
| NEMA Rating | 1, 12, 2, 3, 3R, 4, 4X |
| Contact Form | 1NO/1NC |
| Type of Operator | 40mm Mushroom Head |
| Head Material | Plastic |
| Action | Maintained |
| Product Type | Emergency Stop Push Buttons |
| Bezel Material | Metal |
| Lamp Type | Not Applicable |
| Lamp Module Type | Not Applicable |
| Type of button | Mushroom |
| Degree of protection (IP) | IP67/IP69K |
| Number of contacts as normally closed contact | 1 |
| Switching function latching | No |
| Number of command positions | 1 |
| Number of contacts as change-over contact | 0 |
| Colour button | Red |
| With front ring | No |
| Number of contacts as normally open contact | 1 |
| Operating Temperature - Maximum | 158 deg F |
| Legend Color | Black |
| NEMA Enclosure Rating | 4X, 12, 4, 3, 3R, 1, 2 |
| Legend Background Color | Yellow |
| Overall Depth | 8 in |
| Operator Material | Zinc Alloy |
| AC Contact Rating | 10 A @ 600 V |
| Operating Temperature - Minimum | -13 deg F |
| Overall Width | 5.2 in |
| Mechanical Operating Durability | 3.00 x 10^5 |
| Lamp Voltage - Maximum | Not Applicable |
| Series | 3SU |
| Operator Voltage Rating - Maximum | 500 V |
| Panel Cutout Diameter | 22 mm |
| Push Button Style | Mushroom Head |
| Mushroom Head Diameter | 40 mm |
| Overall Height | 2 in |
| Manufacturer Warranty Length | 1 yr |
| DC Contact Rating | 1 A @ 600 V |
| Number of Indicator Lights | 0 |
| Maintained Action Release | Push, Pull |
| Operator Illumination | Non-Illuminated |
| Hazardous Location Specification | Not Applicable |
| Head Color | Red |
| Package Quantity | 1 |
