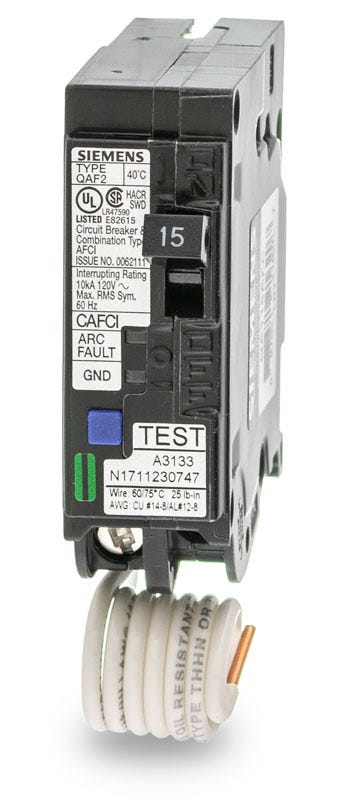

The Siemens QA115AF 1 Pole Arc Fault Circuit Breaker is designed for general industrial use such as branch circuit protection. This CSA certified unit is a thermal/magnetic overcurrent protection device which provides arc protection and prevents the onset of fire due to faulty connections. This AFCI (Arc Fault Circuit Interrupter) can identify electrical arcing conditions that may eventually cause fire and cuts off the electrical supply to prevent damage. The QA115AF is designed for 1-phase circuits and made for use with Siemens single phase load centers. This circuit breaker has voltage current and interrupting ratings of 120 VAC 15 Amp and 10 kAIC respectively. It has the following dimensions: Length 4.33" Width 1.18" and Depth 3.15".
| Brand | Siemens |
|---|---|
| Series | QO |
| Amperage | 15 |
| Voltage | 120 VAC |
| Poles | 1 |
| Terminal Connection | Plug-In |
| Length (in) | 4.33 |
| Width (in) | 1.18 |
| Height (in) | 3.15 |
| For Use With | Siemens Single Phase Load Centers |
| Standards | UL Listed, CSA Certified |
| Circuit Breaker Type | Arc Fault |
| Max Wire Size | 8 AWG/8 AWG |
| Min Wire Size | 14 AWG/12 AWG |
| Upc | 88762102016 |
| Gtin | 88762102016 |
