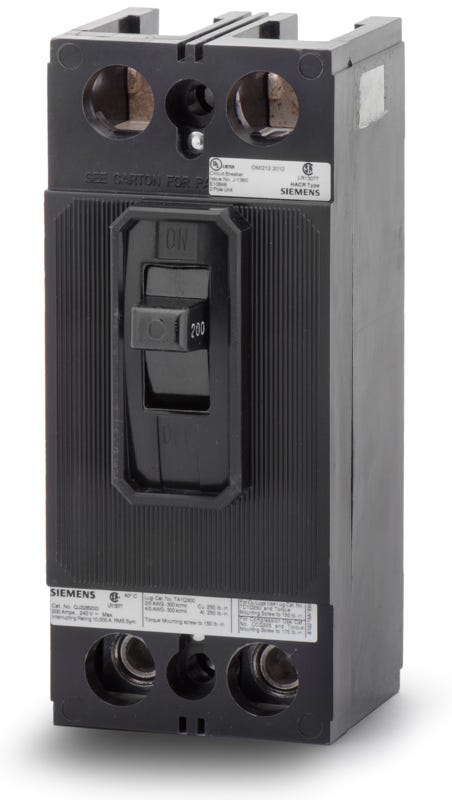

The Siemens QJ22B200HX is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 200 Amps and a voltage rating of 240V. It has an interrupting rating of 10kAIC at 240V. The QJ22B200HX has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | Siemens |
|---|---|
| Series | QJ |
| Amperage | 200 |
| Voltage | 240V |
| Poles | 2 |
| Phase | 1 |
| Mounting Type | Bolt-On |
| Interrupting Rating | 10kAIC at 240V |
| Frame Type | QJ |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Load Side Lug |
| Mpn | QJ22B200HX |
| Upc | 783643168206 |
| Gtin | 783643168206 |
